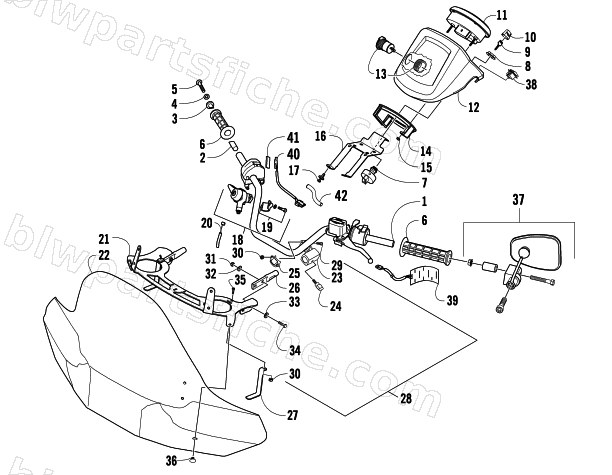

2008 Arctic Cat 700 EFI AUTOMATIC TRANSMISSION 4X4 TRV CRUISER — HANDLEBAR AND WINDSHIELD ASSEMBLY
2008 700 EFI AUTOMATIC TRANSMISSION 4X4 TRV CRUISER
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0436-979 | R/B 1436-546 | 1 | $234.95 | |
| 1 | 0505-476 | TUBE,HANDLE BAR-BLACK | 1 | $47.95 | |
| 2 | 0405-218 | PLUG,HANDLEBAR | 1 | $20.63 | |
| 3 | 0405-149 | END,HANDLE BAR | 1 | $3.16 | |
| 4 | 8050-247 | WASHER,FLAT- 5/16 X .688 X .065 Z&Y | 1 | $0.68 | |
| 5 | 8477-845 | SCREW,MACH-TSTRH M8X1.25X45 Z&BLK | 1 | $3.44 | |
| 6 | 0405-147 | GRIP,HANDLEBAR (EXTERNAL) | 1 | $20.63 | |
| 7 | 0430-090 | SWITCH,IGNITION-LIGHTS (09 ATV) | 1 | $66.95 | |
| 8 | 0430-050 | NUT,FLANGE-KEYSWITCH | 1 | $1.92 | |
| 9 | 0430-042 | KEY,IGNITION SERIES-Y (LH BLANK) | 1 | $5.92 | |
| 9 | 0430-043 | KEY,IGNITION SERIES-Z (RH BLANK) | 1 | $11.95 | |
| 10 | 0430-054 | COVER,KEY | 1 | $15.11 | |
| 11 | 0520-031 | GAUGE,A/D LCD (08 700-SEFI TRV) | 1 | $525.95 | |
| 12 | 0505-575 | POD,INSTRUMENT (MATTE BLACK-PAINTED) | 1 | $100.95 | |
| 13 | 0641-897 | OUTLET, ACCESSORY - 12V DC | 1 | $23.39 | |
| 14 | 0420-065 | CLAMP,PLASTIC-LCD GAUGE | 1 | $4.40 | |
| 15 | 0423-493 | NUT,HEX-M4-.7 W/STAR WSR | 1 | $0.26 | |
| 16 | 2506-470 | BRKT,MTG GAUGE-PTD | 1 | $26.95 | |
| 17 | 0423-535 | RIVET,PLASTIC-REINSTALLABLE | 1 | $1.37 | |
| 18 | 0502-527 | LEVER, DIFFERENTIAL LOCK - ASSEMBLY | 1 | $136.95 | |
| 20 | 0487-050 | CABLE,DIFF LOCK | 1 | $39.95 | |
| 21 | 0541-589 | BRACKET,WINDSHIELD-PTD BLK | 1 | $53.95 | |
| 22 | 1441-621 | WINDSHIELD,BLACK | 1 | $101.95 | |
| 23 | 1436-554 | STD QR WINDSHIELD BRACKET KIT | 1 | $53.95 | |
| 24 | 1441-624 | KNOB,PLASTIC-BLK | 1 | $8.21 | |
| 26 | 0541-591 | PIN,TAPER-LEFT-PTD BLK | 1 | $13.95 | |
| 27 | 0541-594 | BRACKET,CUP HOLDER-PTD BLK | 1 | $20.63 | |
| 28 | 1436-560 | HARDWARE ATTACHMENT KIT- STD WINDSHIELD | 1 | $20.63 | |
| 37 | 1436-507 | MIRROR, HANDLEBAR END, ATV | 1 | $44.95 | |
| 38 | 0609-835 | SWITCH, PASS-HAND WARMER | 1 | $69.95 | |
| 39 | 0609-800 | ELEMENT, HW- H/L RH | 1 | $85.95 | |
| 40 | 0409-134 | ELEMENT,TW-HI/LO INV (010 FIS) | 1 | $69.95 | |
| 41 | 0617-248 | PAD, INSULATOR-THUMB WARMER | 1 | $1.37 | |
| 42 | 0441-498 | TUBE, SHRINK-0.75"X 2.00" | 1 | $16.49 |
