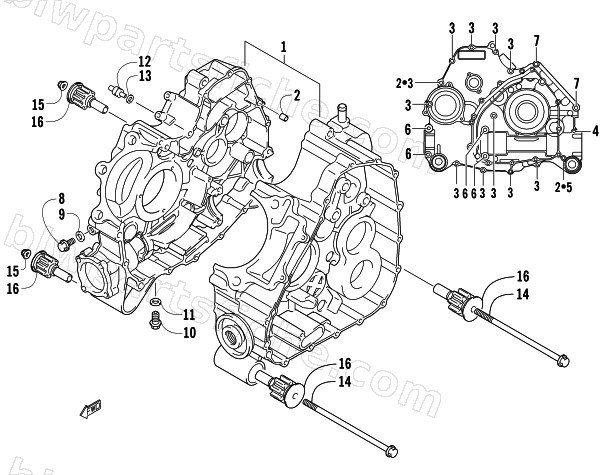

CRANKCASE ASSEMBLY
2008 700 EFI AUTOMATIC TRANSMISSION 4X4 TRV CRUISER
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3403-226 | CRANKCASE SET | 1 | $1,973.95 | |
| 2 | 3004-822 | PIN,DOWEL(ALIGMENT) | 1 | $3.85 | |
| 3 | 3007-505 | BOLT,OIL PAN | 1 | $3.16 | |
| 4 | 3423-392 | BOLT | 1 | $3.02 | |
| 5 | 3423-094 | BOLT, CRANKCASE-M6X90 | 1 | $4.54 | |
| 6 | 3007-399 | BOLT,INLET PIPE | 1 | $3.85 | |
| 7 | 3004-424 | BOLT,M8X70 | 1 | $2.95 | |
| 8 | 3007-407 | BOLT,GROUND | 1 | $3.16 | |
| 9 | 3402-436 | WASHER | 1 | $1.92 | |
| 10 | 3403-064 | PLUG,OIL DRAIN | 1 | $6.34 | |
| 11 | 3402-011 | GASKET,OIL DRAIN PLUG- M12.1X16.2X3.7 | 1 | $3.44 | |
| 12 | 3403-065 | JET,T/M OIL GALLERY | 1 | $47.95 | |
| 13 | 3423-051 | O RING | 1 | $2.75 | |
| 14 | 3423-456 | BOLT, L:195 | 1 | $13.73 | |
| 15 | 3423-863 | NUT | 1 | $4.54 | |
| 16 | 3423-799 | BUSH,ENG MTG | 1 | $47.95 |
