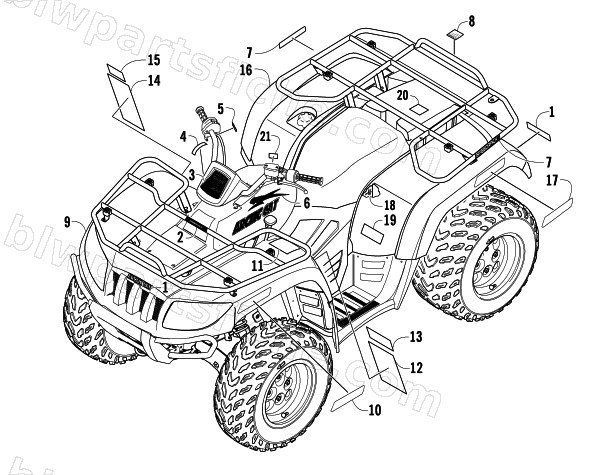

2008 Arctic Cat 700 EFI AUTOMATIC TRANSMISSION 4X4 FIS — BODY PANELS AND DECALS
2008 700 EFI AUTOMATIC TRANSMISSION 4X4 FIS
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0411-501 | DECAL,"ARCTIC CAT"-WHT | 1 | $3.30 | |
| 1 | 1411-725 | DECAL,GRAPHIC-REAR (BLACK) | 1 | $4.95 | |
| 2 | 1411-050 | DECAL,SPEEDRACK | 1 | $1.78 | |
| 3 | 1411-813 | DECAL,GRAPHIC-POD(700 S7 CAMO) | 1 | $12.35 | |
| 3 | 1411-570 | DECAL,POD | 1 | $66.95 | |
| 4 | 0411-426 | DECAL,WARNING-CLUTCH COVER-ATV | 1 | $3.30 | |
| 5 | 0411-966 | DECAL,WARNING DIFF LOCK(MINIATURE) | 1 | $1.78 | |
| 6 | 1411-301 | DECAL,GRAPHIC UPPER RH/LH (A-BODY CAMO) | 1 | $42.95 | |
| 6 | 1411-634 | DECAL,SIDE-ARCTIC CAT-RH(A&B BODY) | 1 | $19.25 | |
| 6 | 1411-635 | DECAL,SIDE-ARCTIC CAT-LH(A&B BODY) | 1 | $19.25 | |
| 7 | 0411-965 | DECAL,"SPEEDRACK"(MRP) | 1 | $3.30 | |
| 8 | 1411-077 | R/B 4411-550 | 1 | $3.95 | |
| 9 | 2516-055 | FENDER,FRONT - ASSEMBLY (MAX 4 CAMO) | 1 | $1,205.95 | |
| 9 | 0518-027 | FENDER,FRONT - ASSEMBLY (MARSH GREEN) | 1 | $533.95 | |
| 10 | 0411-818 | REFLECTOR,FRONT-RH | 1 | $6.47 | |
| 10 | 0411-819 | REFLECTOR,FRONT-LH | 1 | $6.47 | |
| 11 | 0411-401 | DECAL, WARNING-AGE (16) | 1 | $58.95 | |
| 12 | 0411-218 | DECAL,WARNING-GENERAL | 1 | $17.87 | |
| 13 | 1411-574 | DECAL,WARNING-OFF ROAD ONLY | 1 | $3.30 | |
| 14 | 1411-250 | DECAL,WARNING-PRE RIDE(AE) | 1 | $12.35 | |
| 15 | 0411-835 | DECAL,WARNING HILL | 1 | $4.95 | |
| 16 | 2516-076 | FENDER,REAR - ASSEMBLY (MAX 4 CAMO) | 1 | $1,205.95 | |
| 16 | 2516-073 | FENDER,REAR - ASSEMBLY (MARSH GREEN) | 1 | $539.95 | |
| 17 | 1411-592 | REFLECTOR,REAR-RH | 1 | $5.37 | |
| 17 | 1411-593 | REFLECTOR,REAR-LH | 1 | $5.37 | |
| 18 | 0470-658 | SHIELD,HEAT-BATTERY BOX | 1 | $2.61 | |
| 19 | 0411-430 | DECAL, TIRE PRESSURE | 1 | $3.30 | |
| 20 | 0411-435 | DECAL, WARNING-PASSENGER | 1 | $66.95 | |
| 21 | 1411-865 | DECAL,WARNING-BRAKE LEVER LOCK | 1 | $3.30 |
