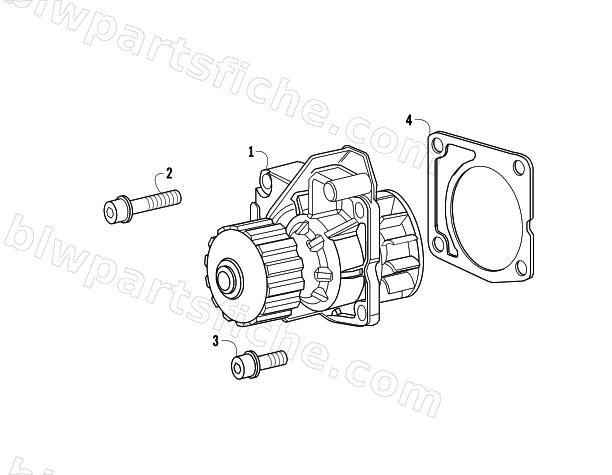

2008 Arctic Cat 700 AUTOMATIC TRANSMISSION 4X4 DIESEL — WATER PUMP ASSEMBLY
2008 700 AUTOMATIC TRANSMISSION 4X4 DIESEL
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3206-271 | WATER PUMP ASSY. | 1 | $591.95 | |
| 2 | 3206-273 | SCREW M 8 X 1,25 X 35 | 1 | $4.95 | |
| 3 | 3206-274 | SCREW M 8 X 1,25 X 16 | 1 | $6.75 | |
| 4 | 3206-272 | PUMP BODY GASKET | 1 | $6.89 |
