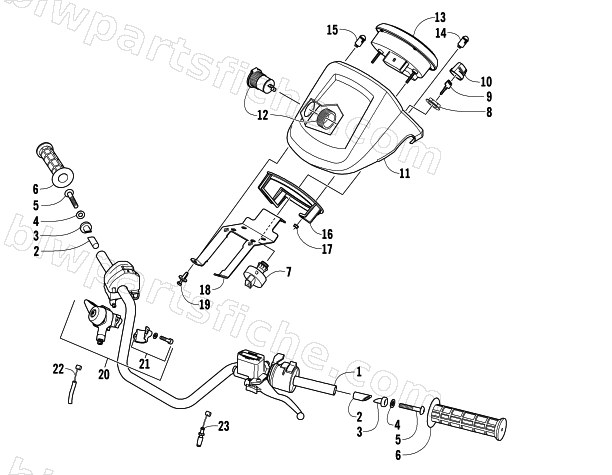

2008 Arctic Cat 700 AUTOMATIC TRANSMISSION 4X4 DIESEL — HANDLEBAR ASSEMBLY
2008 700 AUTOMATIC TRANSMISSION 4X4 DIESEL
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0505-476 | TUBE,HANDLE BAR-BLACK | 1 | $47.95 | |
| 2 | 0405-218 | PLUG,HANDLEBAR | 1 | $20.63 | |
| 3 | 0405-149 | END,HANDLE BAR | 1 | $3.16 | |
| 4 | 8050-247 | WASHER,FLAT- 5/16 X .688 X .065 Z&Y | 1 | $0.68 | |
| 5 | 8477-845 | SCREW,MACH-TSTRH M8X1.25X45 Z&BLK | 1 | $3.44 | |
| 6 | 0405-147 | GRIP,HANDLEBAR (EXTERNAL) | 1 | $20.63 | |
| 7 | 0430-090 | SWITCH,IGNITION-LIGHTS (09 ATV) | 1 | $66.95 | |
| 8 | 0430-050 | NUT,FLANGE-KEYSWITCH | 1 | $1.92 | |
| 9 | 0430-042 | KEY,IGNITION SERIES-Y (LH BLANK) | 1 | $5.92 | |
| 9 | 0430-043 | KEY,IGNITION SERIES-Z (RH BLANK) | 1 | $11.95 | |
| 10 | 0430-054 | COVER,KEY | 1 | $15.11 | |
| 11 | 0505-501 | POD,INSTRUMENT-ROUTED (GREEN) | 1 | $100.95 | |
| 11 | 0505-500 | POD,INSTRUMENT-ROUTED (RED) | 1 | $97.95 | |
| 12 | 0641-897 | OUTLET, ACCESSORY - 12V DC | 1 | $23.39 | |
| 13 | 0520-024 | GAUGE,LCD (07 LD 686) | 1 | $525.95 | |
| 14 | 0420-074 | LIGHT,INDICATOR-GLOW PLUG | 1 | $17.87 | |
| 15 | 0420-075 | LIGHT,INDICATOR-BATTERY | 1 | $17.87 | |
| 16 | 0420-065 | CLAMP,PLASTIC-LCD GAUGE | 1 | $4.40 | |
| 17 | 0423-493 | NUT,HEX-M4-.7 W/STAR WSR | 1 | $0.26 | |
| 18 | 2506-470 | BRKT,MTG GAUGE-PTD | 1 | $26.95 | |
| 19 | 0423-535 | RIVET,PLASTIC-REINSTALLABLE | 1 | $1.37 | |
| 20 | 0502-527 | LEVER, DIFFERENTIAL LOCK - ASSEMBLY | 1 | $136.95 | |
| 22 | 0487-050 | CABLE,DIFF LOCK | 1 | $39.95 | |
| 23 | 0487-044 | CABLE,THROTTLE | 1 | $69.95 |
