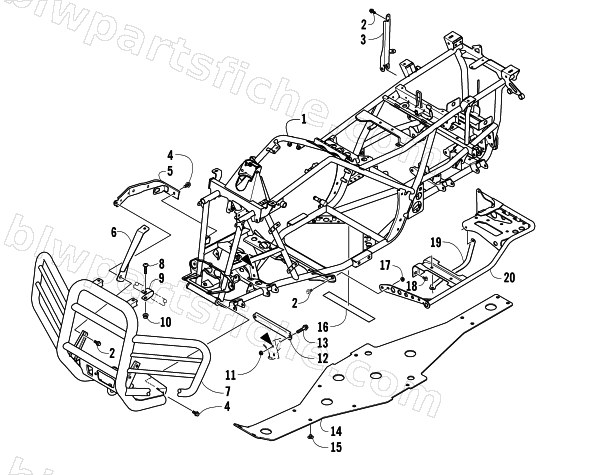

2008 Arctic Cat 700 AUTOMATIC TRANSMISSION 4X4 DIESEL — FRAME AND RELATED PARTS
2008 700 AUTOMATIC TRANSMISSION 4X4 DIESEL
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2506-568 | FRAME,MAIN-BLACK(DIESEL TRV) | 1 | $1,700.95 | |
| 2 | 8408-816 | SCREW,CAP-HFH M8X1.25X16 CL8.8 Z&Y | 1 | $0.68 | |
| 3 | 2506-447 | BRACKET,FUEL TANK-BLACK | 1 | $25.95 | |
| 4 | 8409-020 | SCREW,CAP-HFH M10X1.25X20 CL10.9 Z&Y | 1 | $0.54 | |
| 5 | 2506-813 | CHANNEL,BUMPER MOUNTING-BLACK | 1 | $54.95 | |
| 5 | 2506-285 | CHANNEL,BUMPER MOUNTING-BLACK | 1 | $30.95 | |
| 6 | 1506-562 | BRACKET,BUMPER-RH-BLACK | 1 | $30.95 | |
| 6 | 1506-563 | BRACKET,BUMPER-LH-BLACK | 1 | $30.95 | |
| 8 | 8468-845 | SCREW,MACH-TSPNH M8X1.25X45 CL8.8 BLK | 1 | $4.26 | |
| 9 | 1506-667 | STRAP,BUMPER SUPPORT-BLACK | 1 | $13.73 | |
| 10 | 8424-805 | NUT,HEX FLG-M8X1.25 CL8 RIE BLK | 1 | $0.95 | |
| 11 | 0423-744 | NUT,HEX FLANGE-NSL M10X1.25 W/ 204 PATCH | 1 | $1.92 | |
| 12 | 2516-852 | BRACE,A-ARM-PTD BLACK | 1 | $20.63 | |
| 13 | 8409-025 | SCREW,CAP-HFH M10X1.25X25 CL10.9 Z&Y | 1 | $1.50 | |
| 14 | 2406-253 | PANEL,BELLY | 1 | $163.95 | |
| 15 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 16 | 0406-289 | PAD,BATTERY-TOP RR | 1 | $1.78 | |
| 17 | 8424-802 | NUT,HEX-FLG M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 18 | 8409-016 | SCREW,CAP-HFH M10X1.25X16 CL10.9 Z&Y | 1 | $1.50 | |
| 19 | 2406-216 | STRAP,FOOTREST SUPPORT-RH | 1 | $20.63 | |
| 19 | 2406-217 | STRAP,FOOTREST SUPPORT-LH | 1 | $20.63 | |
| 20 | 1506-848 | FOOTREST,RH-WELDMENT | 1 | $156.95 | |
| 20 | 1506-849 | FOOTREST,LH-WELDMENT | 1 | $156.95 |
