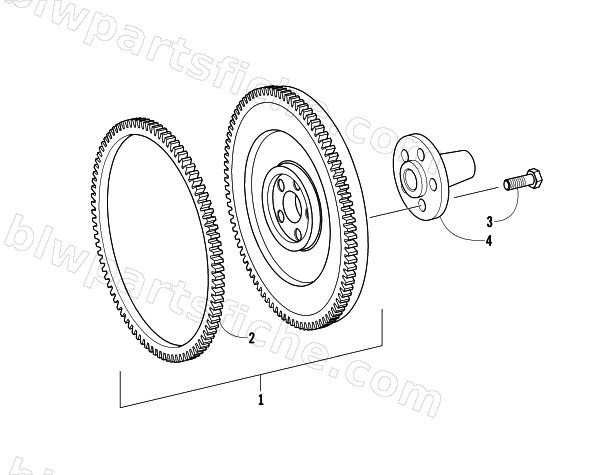

2008 Arctic Cat 700 AUTOMATIC TRANSMISSION 4X4 DIESEL — FLYWHEEL AND CROWN GEAR ASSEMBLY
2008 700 AUTOMATIC TRANSMISSION 4X4 DIESEL
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3206-040 | FLYWHEEL WITH CROWN Z = 94 (KG 7,4) | 1 | $766.95 | |
| 2 | 3206-037 | CROWN GEAR Ø 238 Z=94 | 1 | $350.95 | |
| 3 | 8409-040 | SCREW,CAP-HFH M10X1.25X40 CL10.9 Z&Y | 1 | $1.50 | |
| 4 | 1402-560 | AXLE,STUB-CVT DRIVE | 1 | $108.95 |
