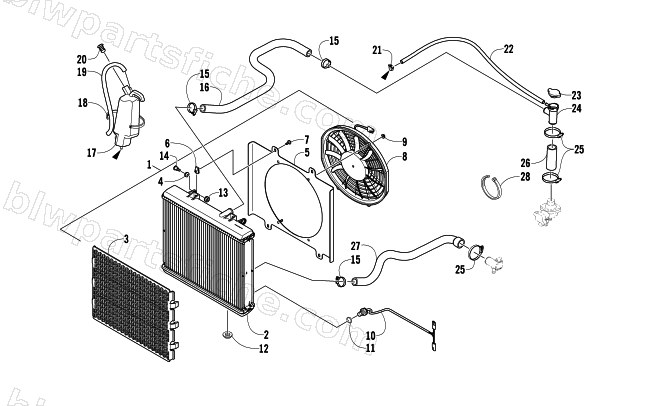

2008 Arctic Cat 700 AUTOMATIC TRANSMISSION 4X4 DIESEL — COOLING ASSEMBLY
2008 700 AUTOMATIC TRANSMISSION 4X4 DIESEL
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0413-276 | RADIATOR, DIESEL - ASSEMBLY | 1 | $668.95 | |
| 2 | 0413-180 | RADIATOR-FABRICATED | 1 | $595.95 | |
| 3 | 0413-181 | SCREEN,RADIATOR | 1 | $86.95 | |
| 4 | 0423-030 | GROMMET(LV 11378) | 1 | $4.26 | |
| 5 | 0413-182 | SHROUD,FAN | 1 | $156.95 | |
| 6 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 7 | 8476-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&Y | 1 | $0.40 | |
| 8 | 0413-183 | FAN,COOLING-11" | 1 | $423.95 | |
| 9 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 | |
| 10 | 0413-045 | SWITCH, SENSOR-TEMP | 1 | $66.95 | |
| 11 | 1602-213 | O-RING,2-013 | 1 | $0.40 | |
| 12 | 0423-028 | BUSHING,STEM(LV28098) | 1 | $4.95 | |
| 13 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 14 | 0423-484 | BOLT,SHOULDER-9.6X9.55XM6 BLK | 1 | $2.69 | |
| 15 | 0423-496 | CLAMP,HOSE- WORM 19-38mmX12.7mm | 1 | $2.47 | |
| 16 | 0410-106 | HOSE,COOLANT-HOT SIDE | 1 | $42.95 | |
| 17 | 0413-086 | BOTTLE,OVERFLOW | 1 | $63.95 | |
| 18 | 0623-316 | CABLE TIE,SGL LOOP-.500X14-BLK (RTE1400) | 1 | $10.97 | |
| 19 | 0610-011 | HOSE,OILLINE 5/16X25' | 1 | $109.95 | |
| 20 | 0413-087 | STOPPER,COOLANT | 1 | $4.54 | |
| 21 | 0124-045 | CLAMP,HOSE - .402/.449 DIA (SNP04) | 1 | $2.61 | |
| 22 | 0610-016 | HOSE,GAS 1/4 X25' | 1 | $117.95 | |
| 23 | 0413-255 | CAP,RADIATOR | 1 | $53.95 | |
| 24 | 0413-193 | TANK,COOLANT FILL | 1 | $20.63 | |
| 25 | 1623-093 | CLAMP,BAND-SAE #20 | 1 | $5.78 | |
| 26 | 0410-121 | HOSE,COOLANT-HOT SIDE COUPLER | 1 | $49.95 | |
| 27 | 0410-107 | HOSE,COOLANT-COLD SIDE | 1 | $41.95 | |
| 28 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 |
