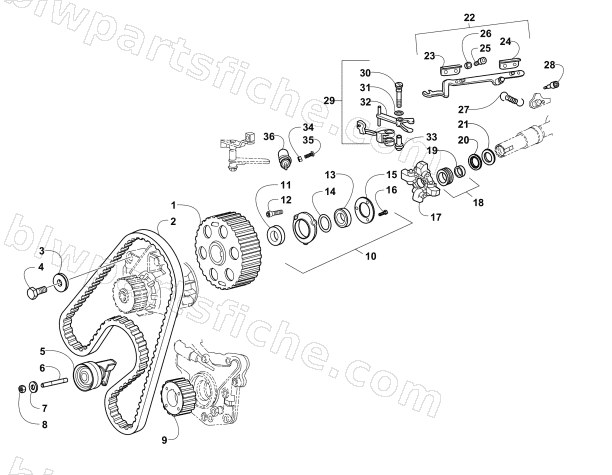

2008 Arctic Cat 700 AUTOMATIC TRANSMISSION 4X4 DIESEL — CAM PULLEYS, TIMING BELT, AND SPEED GOVERNOR ASSEMBLY
2008 700 AUTOMATIC TRANSMISSION 4X4 DIESEL
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3206-153 | CAM GEAR TIMING BELT | 1 | $429.95 | |
| 2 | 3206-154 | TIMING BELT Z=113 | 1 | $525.95 | |
| 3 | 3206-156 | WASHER DIAM.11 | 1 | $26.95 | |
| 4 | 3206-155 | SCREW | 1 | $12.35 | |
| 5 | 3206-159 | TIMING BELT TENSIONER | 1 | $695.95 | |
| 6 | 3206-158 | STUD | 1 | $16.49 | |
| 7 | 3206-157 | WASHER | 1 | $13.73 | |
| 8 | 3206-142 | NUT M 10 | 1 | $2.61 | |
| 9 | 3206-160 | DRIVING PULLEY | 1 | $244.95 | |
| 10 | 3206-209 | GOVERNOR COVER | 1 | $309.95 | |
| 11 | 3206-208 | SEAL RING 35X52X7 | 1 | $30.95 | |
| 12 | 3206-088 | SCREW M 6 X 16 | 1 | $1.78 | |
| 13 | 3206-211 | BALL BEARING | 1 | $68.95 | |
| 14 | 3206-210 | RUBBER OIL SEAL | 1 | $16.49 | |
| 15 | 3206-212 | PLATE | 1 | $20.63 | |
| 16 | 3206-166 | SCREW M 6 X 16 | 1 | $2.61 | |
| 17 | 3206-213 | WEIGHT SUPPORT | 1 | $231.95 | |
| 18 | 3206-214 | CONTROL SLEEVE | 1 | $187.95 | |
| 19 | 3206-216 | SLEEVE | 1 | $47.95 | |
| 20 | 3206-217 | THRUST ROLLER | 1 | $51.95 | |
| 21 | 3206-215 | THRUST WASHER | 1 | $10.97 | |
| 22 | 3206-381 | INJECTION PUMP RACK | 1 | $156.95 | |
| 23 | 3206-220 | PLATE | 1 | $17.87 | |
| 25 | 3206-221 | SCREW M3 X 6 | 1 | $1.78 | |
| 26 | 3206-223 | WASHER | 1 | $4.95 | |
| 27 | 3206-222 | EXTRA-FUEL SPRING 4300-4500 KRAFTSTOFFFE | 1 | $16.49 | |
| 28 | 3206-225 | SCREW M 3 X 10 | 1 | $50.95 | |
| 29 | 3206-228 | GOVERNOR LEVER ASSY | 1 | $316.95 | |
| 30 | 3206-224 | CONTROL LEVER PIN | 1 | $30.95 | |
| 31 | 3206-226 | RUBBER OIL SEAL | 1 | $1.50 | |
| 32 | 3206-229 | SLEEVE | 1 | $42.95 | |
| 33 | 3206-227 | JOURNAL | 1 | $30.95 | |
| 34 | 3206-232 | NUT M 3 | 1 | $2.06 | |
| 35 | 3206-231 | SCREW M 3 X 14 | 1 | $1.78 | |
| 36 | 3206-230 | MIN-MAX DEVICE | 1 | $200.95 |
