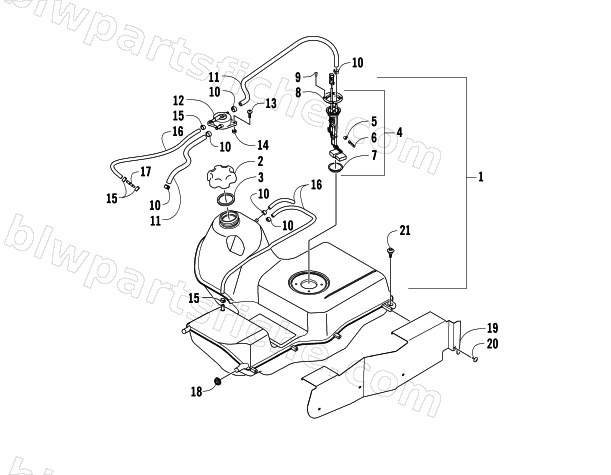

2008 Arctic Cat 650 H1 AUTOMATIC TRANSMISSION 4X4 TRV — GAS TANK ASSEMBLY
2008 650 H1 AUTOMATIC TRANSMISSION 4X4 TRV
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0570-261 | TANK,FUEL-ASSEMBLY | 1 | $494.95 | |
| 2 | 0470-438 | CAP,FUEL TANK | 1 | $13.73 | |
| 4 | 0570-253 | SENDER,FUEL LEVEL-KIT | 1 | $180.95 | |
| 5 | 0423-603 | CLAMP,HOSE-.31 DIA | 1 | $3.57 | |
| 6 | 0470-475 | FILTER, FUEL | 1 | $16.49 | |
| 7 | 0470-521 | SEAL, FUEL LEVEL SENDER | 1 | $3.16 | |
| 8 | 0470-639 | MOUNT,FUEL LEVEL SENDER | 1 | $4.82 | |
| 9 | 1623-158 | SCREW,PLASTITE-TSPNH 1/4-10X.500 Z&BLK | 1 | $0.95 | |
| 10 | 0423-688 | CLAMP,SNAP-10 MM | 1 | $2.33 | |
| 11 | 0410-070 | HOSE,FUEL-25 FT (0419-272 CTL) | 1 | $66.95 | |
| 12 | 0470-758 | PUMP,FUEL | 1 | $69.95 | |
| 13 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 14 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 15 | 0423-689 | CLAMP,SNAP-12 MM | 1 | $2.06 | |
| 16 | 0410-143 | HOSE,FUEL-1/4" 25' (0410-141 CTL) | 1 | $217.95 | |
| 17 | 0470-702 | HOSE BARB,INTAKE MANIFOLD | 1 | $2.88 | |
| 18 | 0423-460 | GROMMET, FUEL TANK | 1 | $4.26 | |
| 19 | 0470-715 | SHIELD,FUEL TANK | 1 | $64.95 | |
| 20 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 21 | 0423-732 | SCREW,FUEL TANK | 1 | $2.61 |
