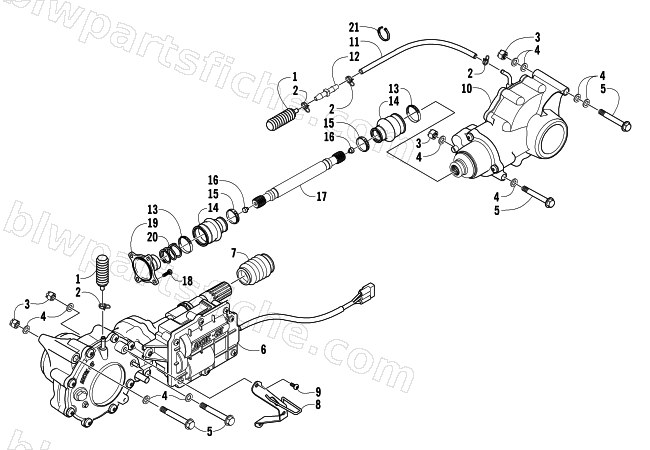

2008 Arctic Cat 650 H1 AUTOMATIC TRANSMISSION 4X4 TRV — DRIVE TRAIN ASSEMBLY
2008 650 H1 AUTOMATIC TRANSMISSION 4X4 TRV
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1402-620 | BLADDER,CASE | 1 | $12.35 | |
| 2 | 0423-315 | CLAMP, HOSE-DOUBLE WIRE | 1 | $0.95 | |
| 3 | 8428-002 | NUT,HEX FLG- CLINCH LOCK- M10-1.25 Z&Y | 1 | $5.09 | |
| 4 | 0423-426 | WASHER,FLAT-.438X.875X.125 | 1 | $0.68 | |
| 5 | 0423-404 | SCREW,CAP-HFH M10X1.25X120 CL10.9 Z&Y | 1 | $3.30 | |
| 6 | 1502-248 | GEARCASE,FRONT(3.6 - 500 MAN LOCK) | 1 | $2,116.95 | |
| 7 | 0402-966 | BOOT,PROP SHAFT (LONG) | 1 | $13.73 | |
| 8 | 0502-500 | PLATE,CABLE-BLACK | 1 | $21.95 | |
| 9 | 0423-396 | SCREW,SELF TAP-TSPH M6-1.0X15 | 1 | $1.09 | |
| 10 | 1502-402 | GEARCASE,REAR(3.6-H1) | 1 | $1,727.95 | |
| 11 | 0410-070 | HOSE,FUEL-25 FT (0419-272 CTL) | 1 | $66.95 | |
| 12 | 0470-702 | HOSE BARB,INTAKE MANIFOLD | 1 | $2.88 | |
| 13 | 0423-393 | CLAMP,42mm DIA - BOOT | 1 | $4.40 | |
| 14 | 0402-985 | BOOT,COUPLER (TBX) | 1 | $6.75 | |
| 15 | 0423-411 | CLAMP,30MM-BOOT | 1 | $4.26 | |
| 16 | 0673-618 | BUMPER,DRIVESHAFT | 1 | $3.57 | |
| 17 | 1402-233 | SHAFT,PROPELLER-REAR (500A/400) | 1 | $69.95 | |
| 18 | 8408-820 | SCREW,CAP-HFH M8X1.25X20 CL8.8 Z&Y | 1 | $0.68 | |
| 19 | 2402-193 | FLANGE,OUTPUT | 1 | $82.95 | |
| 20 | 1402-026 | SPRING | 1 | $1.92 | |
| 21 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 |
