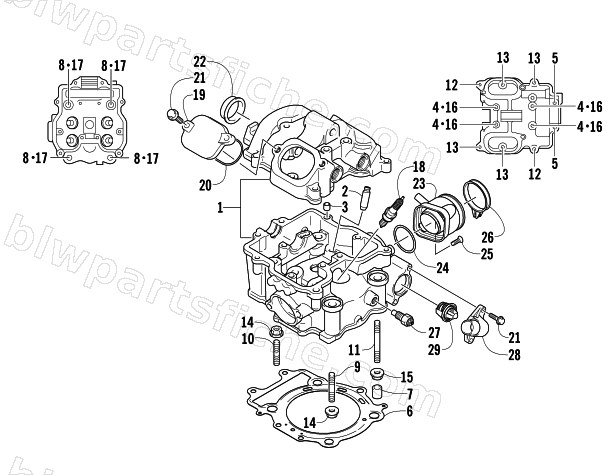

2008 Arctic Cat 650 H1 AUTOMATIC TRANSMISSION 4X4 FIS — CYLINDER HEAD ASSEMBLY
2008 650 H1 AUTOMATIC TRANSMISSION 4X4 FIS
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0808-047 | HEAD,CYLINDER, A650 -ASSY | 1 | $1,565.95 | |
| 3 | 0829-062 | DOWEL,SLEEVE-OD8 X L7 | 1 | $1.50 | |
| 4 | 0826-001 | SCREW,CAP HFH M6 x 1 x 55 | 1 | $1.95 | |
| 5 | 0826-002 | SCREW,CAP HFH M6 x 1 x 30 | 1 | $1.50 | |
| 6 | 0830-085 | GASKET, CYLINDER HEAD, A650 | 1 | $82.95 | |
| 7 | 0829-002 | DOWEL, SPLIT, 13 x 18 | 1 | $2.88 | |
| 8 | 0808-037 | R/B 0808-259 | 1 | $22.95 | |
| 9 | 0827-030 | STUD, M6 x 1 x 70 | 1 | $4.82 | |
| 10 | 0827-002 | STUD, M6 x 1 x 38 | 1 | $2.47 | |
| 11 | 0827-031 | STUD, M8 x 1.25 x 80 | 1 | $5.78 | |
| 12 | 0826-005 | SCREW,CAP HFH M6 x 1 x 35 | 1 | $2.33 | |
| 13 | 0826-006 | SCREW,CAP HFH M6 x 1 x 25 | 1 | $0.95 | |
| 14 | 8424-604 | NUT,HEX-FLG M6X1.0 CL8 RIE SIL | 1 | $0.54 | |
| 15 | 8424-804 | NUT,HEX-FLG M8X1.25 CL8 RIE SIL | 1 | $0.95 | |
| 16 | 0830-107 | SEAL,FASTENER | 1 | $4.95 | |
| 17 | 0830-147 | WASHER,STEEL,10X22X2.3 | 1 | $0.95 | |
| 18 | 0217-799 | SPARK PLUG, CPR8E | 1 | $10.97 | |
| 19 | 0808-003 | CAP, VALVE INSPECTION | 1 | $13.73 | |
| 20 | 0830-004 | O-RING, INSPECTION CAP | 1 | $3.71 | |
| 21 | 0826-007 | SCREW,CAP HFH M6 x 1 x 20 | 1 | $1.09 | |
| 22 | 0808-077 | PLUG,CYLINDER HEAD | 1 | $12.35 | |
| 23 | 0570-115 | MANIFOLD,INTAKE-36MM-H1 | 1 | $85.95 | |
| 24 | 0830-090 | O-RING, INTAKE MANIFOLD | 1 | $1.09 | |
| 25 | 0826-008 | SCREW, MACH-TSPH M6 X 1 X 20W/THREADLOC | 1 | $1.50 | |
| 26 | 0423-317 | CLAMP, HOSE -32/50 (NORMA 962) | 1 | $2.75 | |
| 27 | 0808-127 | SWITCH,TEMP-ENGINE BT | 1 | $54.95 | |
| 28 | 0808-008 | COVER, THERMOSTAT | 1 | $17.87 | |
| 29 | 0808-078 | THERMOSTAT (65 DEG) | 1 | $37.95 |
