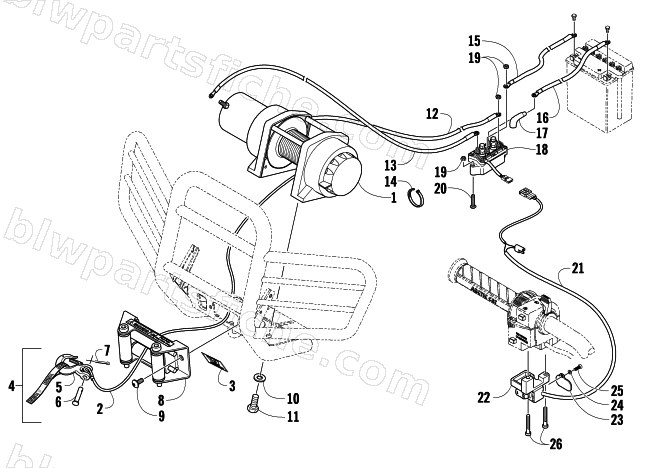

2008 Arctic Cat 500 AUTOMATIC TRANSMISSION 4X4 FIS LE — WINCH ASSEMBLY (LE)
2008 500 AUTOMATIC TRANSMISSION 4X4 FIS LE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1441-704 | WINCH,ARCTIC/WARN-3.0 (COMPOSITE END) | 1 | $831.95 | |
| 2 | 0441-061 | CABLE, WIRE ROPE - 15236 | 1 | $113.95 | |
| 3 | 1411-826 | DECAL,WINCH-ARCTIC CAT/WARN(3.0 RT/XT) | 1 | $1.95 | |
| 4 | 0441-426 | HOOK, WINCH W/STRAP | 1 | $50.95 | |
| 5 | 1441-131 | HOOK,WINCH W/STRAP AND WARNING TAG | 1 | $46.95 | |
| 6 | 1441-130 | PIN,CLEVIS | 1 | $3.16 | |
| 7 | 1441-129 | COTTER PIN | 1 | $2.61 | |
| 8 | 0441-403 | FAIRLEAD,ROLLER-1600 (B) | 1 | $35.95 | |
| 9 | 8468-820 | SCREW,MACH-TSPNH M8X1.25X20 CL8.8 BLK | 1 | $1.50 | |
| 10 | 8051-246 | WASHER,SPR LOCK-5/16 .314X.593X.097 Z&C | 1 | $0.68 | |
| 11 | 1623-131 | SCREW,CAP-HH 5/16-18 X 1" GR 5 Z & C | 1 | $0.15 | |
| 12 | 0445-068 | CABLE, WINCH-SOLENOID (7" YEL #6) | 1 | $10.97 | |
| 13 | 0445-069 | CABLE,WINCH-SOLENOID (10" BLU #6) | 1 | $13.73 | |
| 14 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 15 | 1441-112 | CABLE,BATTERY-SOLENOID (75" BLK #6) | 1 | $64.95 | |
| 16 | 1441-113 | CABLE,BATTERY-SOLENOID (75" RED #6) | 1 | $55.95 | |
| 17 | 0441-060 | BOOT, TERMINAL | 1 | $2.61 | |
| 18 | 0409-066 | R/B 0409-246 | 1 | $139.95 | |
| 19 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 20 | 8476-625 | SCREW,MACH-TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 21 | 0409-087 | SWITCH,WINCH-HARNESS ASSY | 1 | $54.95 | |
| 22 | 0409-034 | HOLDER, SWITCH-WINCH (500 A) | 1 | $10.97 | |
| 23 | 5506-053 | COVER,WINCH SWITCH-BLACK | 1 | $16.49 | |
| 24 | 0423-593 | WASHER,FLAT-Z&B (11MM ODX 5.5MM IDX 1.8) | 1 | $0.95 | |
| 25 | 0423-382 | SCREW, COVER-WINCH SWITCH | 1 | $0.68 | |
| 26 | 8464-560 | SCREW,MACH-PHTRH M5-.8X60 Z&BLK | 1 | $12.35 |
