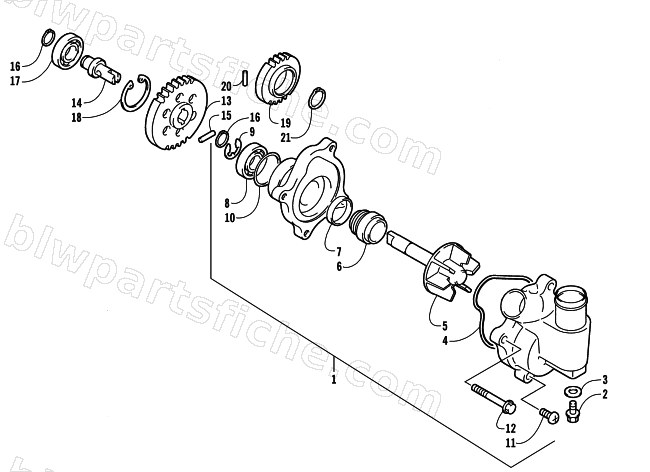

WATER PUMP ASSEMBLY
2008 500 AUTOMATIC TRANSMISSION 4X4 FIS LE
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3402-464 | WATER PUMP ASSY | 1 | $309.95 | |
| 2 | 3423-343 | BOLT,DRAIN | 1 | $4.54 | |
| 3 | 3402-436 | WASHER | 1 | $1.92 | |
| 4 | 3423-402 | O RING | 1 | $23.39 | |
| 5 | 3413-014 | IMPELLER/SHAFT | 1 | $87.95 | |
| 6 | 3005-909 | SEAL, MECHANICAL WATER PUMP | 1 | $66.95 | |
| 7 | 3402-465 | OIL SEAL (M10X21X5) | 1 | $16.49 | |
| 8 | 3003-615 | BEARING,OIL PUMP DRIVESHAFT,M10X26X8 | 1 | $34.95 | |
| 9 | 3007-512 | E RING | 1 | $3.71 | |
| 10 | 3423-404 | O RING | 1 | $22.01 | |
| 11 | 3007-511 | SCREW | 1 | $2.47 | |
| 12 | 3423-896 | BOLT,M6X60 | 1 | $4.54 | |
| 13 | 3402-026 | GEAR, OIL PUMP DRIVEN | 1 | $112.95 | |
| 14 | 3402-466 | SHAFT, DRIVEN GEAR | 1 | $64.95 | |
| 15 | 3423-046 | PIN ,M4X15.8 | 1 | $3.30 | |
| 16 | 3423-871 | CIRCLIP | 1 | $3.71 | |
| 17 | 3402-467 | BEARING, SHAFT | 1 | $37.95 | |
| 18 | 3423-405 | CIRCLIP, SHAFT BEARING | 1 | $6.34 | |
| 19 | 3402-390 | GEAR,OIL PUMP DRIVE | 1 | $79.95 | |
| 20 | 3423-110 | PIN, DECOMP HOLDER | 1 | $3.57 | |
| 21 | 3423-892 | CIRCLIP,FASTENER | 1 | $4.95 |
