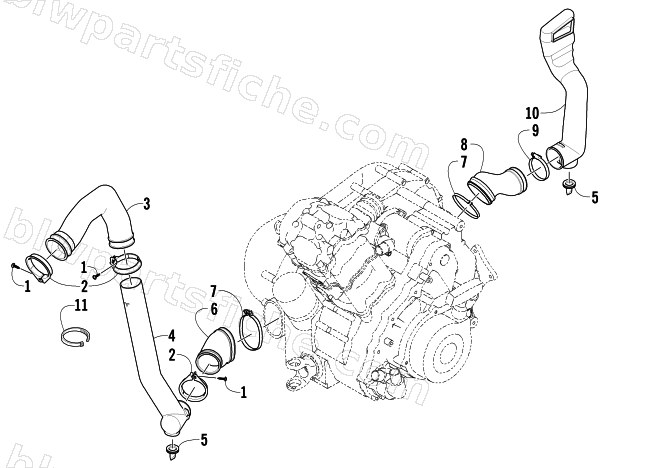

CASE/BELT COOLING ASSEMBLY
2008 500 AUTOMATIC TRANSMISSION 4X4 FIS LE
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0423-342 | SCREW,SELF TAPPING-.1875 X .75 | 1 | $0.26 | |
| 2 | 0423-551 | CLAMP,PLASTIC-SCREW-ROUND(63 DIAx13) | 1 | $2.33 | |
| 3 | 0413-092 | BOOT,AIR IN-BELT COOLING | 1 | $58.95 | |
| 4 | 0513-010 | DUCT,AIR IN-ROUTED | 1 | $47.95 | |
| 5 | 0470-442 | VALVE, AIR CLEANER | 1 | $13.73 | |
| 6 | 0413-198 | BOOT,COOLING-BELT | 1 | $30.95 | |
| 7 | 3402-449 | CLAMP, DUCT FRONT | 1 | $20.63 | |
| 8 | 0413-055 | BOOT,BELT COOLING (500B) | 1 | $45.95 | |
| 9 | 0423-380 | CLAMP,HOSE-WORM-50-70mm x 9mm BLK | 1 | $9.59 | |
| 10 | 0413-094 | DUCT,AIR OUT-BELT COOLING | 1 | $64.95 | |
| 11 | 0123-903 | TIE,CABLE 11.50 | 1 | $0.54 |
