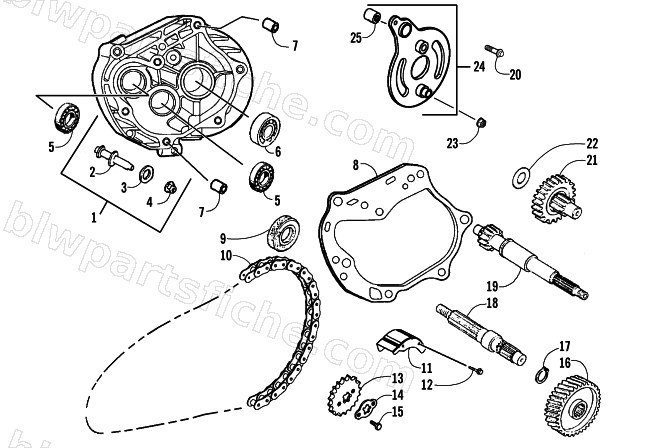

TRANSMISSION ASSEMBLY
2008 50 DVX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3303-521 | CASE COMP MISSION | 1 | $203.95 | |
| 2 | 3304-606 | BOLT ENG BRAKE | 1 | $13.73 | |
| 3 | 3303-462 | O-RING 7.5*1.5 | 1 | $0.95 | |
| 4 | 3303-270 | NUT FLANGE 8MM | 1 | $1.50 | |
| 5 | 3303-596 | BRG BALL RADIAL/6201 | 1 | $37.95 | |
| 6 | 3303-598 | BRG BALL RADIAL 6004 | 1 | $30.95 | |
| 7 | 3303-343 | PIN DOWEL 10*20 | 1 | $1.64 | |
| 8 | 3303-081 | GASKET MISSION CASE A | 1 | $10.97 | |
| 9 | 3303-300 | OIL SEAL 27*42*7 | 1 | $3.30 | |
| 10 | 3303-425 | CHAIN DRIVE | 1 | $66.95 | |
| 11 | 3303-144 | COVER COMP CHAIN | 1 | $16.49 | |
| 12 | 3304-610 | BOLT FLANGE 6*10 | 1 | $1.23 | |
| 13 | 3303-107 | SPROCKET DRIVE 16T | 1 | $30.95 | |
| 14 | 3303-108 | PLATE A2 FIXING **6000 C.97.09.18. | 1 | $2.33 | |
| 15 | 3303-307 | R/B 3307-202 | 1 | $0.65 | |
| 16 | 3303-546 | GEAR FINAL | 1 | $69.95 | |
| 17 | 3303-344 | CIR CLIP EX/20MM | 1 | $1.37 | |
| 18 | 3304-826 | SHAFT,FINAL | 1 | $82.95 | |
| 19 | 3303-544 | SHAFT DRIVE | 1 | $82.95 | |
| 20 | 3304-607 | BOLT FLANGE 8*50 | 1 | $3.02 | |
| 21 | 3303-545 | SHAFT COMP COUNTER | 1 | $126.95 | |
| 22 | 3303-273 | WASHER SIDE 12MM **9000 C.99.07.07. | 1 | $4.13 | |
| 23 | 3303-268 | NUT FLANGE 8MM **7310-M1 C.2001.02.01 | 1 | $1.95 | |
| 24 | 3303-185 | BRAKET ENG HANGER **900 C.2004.01.27 | 1 | $47.95 | |
| 25 | 3303-403 | UNDER RUBBER, BUSH REAR CUSHION | 1 | $6.95 |
