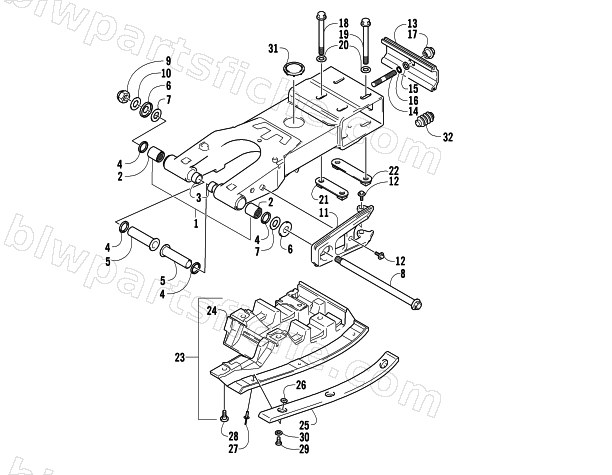

SWING ARM ASSEMBLY
2008 400 DVX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3406-156 | SWINGING ARM SET,REAR | 1 | $2,193.95 | |
| 2 | 3406-133 | BEARING, PIVOT | 1 | $37.95 | |
| 3 | 3406-053 | BUSH,RR SWINGINGARM PIVOT | 1 | $33.95 | |
| 4 | 3406-102 | SEAL, PIVOT BEARING | 1 | $12.35 | |
| 5 | 3406-052 | SPACER,RR SWGARM PIVOT | 1 | $82.95 | |
| 6 | 3406-054 | COVER,SWINGINGARM PIVOT | 1 | $22.95 | |
| 7 | 3423-618 | WASHER, THRUST | 1 | $4.95 | |
| 8 | 3406-051 | SHAFT,RR SWGARM PIVOT | 1 | $122.95 | |
| 9 | 3423-785 | NUT | 1 | $17.87 | |
| 10 | 3423-786 | WASHER | 1 | $4.54 | |
| 11 | 3406-055 | BUFFER,CHAIN TOUCH DEFENSE | 1 | $62.95 | |
| 12 | 3423-656 | BOLT | 1 | $2.33 | |
| 13 | 3446-383 | PLATE,CHAIN ADJUSTER | 1 | $90.95 | |
| 14 | 3423-650 | BOLT, CHAIN ADJUSTER | 1 | $8.79 | |
| 15 | 3423-679 | WASHER, CHAIN ADJUSTER NUT | 1 | $3.57 | |
| 16 | 3423-865 | CIRCLIP | 1 | $4.54 | |
| 17 | 3423-757 | NUT, CHAIN ADJUSTER | 1 | $26.95 | |
| 18 | 3423-643 | BOLT, FR | 1 | $12.95 | |
| 19 | 3423-644 | BOLT, RR | 1 | $10.95 | |
| 20 | 3423-677 | WASHER | 1 | $4.13 | |
| 21 | 3423-586 | WASHER,AXLE HOUSING SET FR | 1 | $17.87 | |
| 22 | 3423-587 | WASHER,AXLE HOUSING SET RR | 1 | $17.87 | |
| 23 | 3406-056 | GUARD SET,SWGARM UNDER | 1 | $300.95 | |
| 24 | 3406-057 | GUARD,SWGARM UNDER | 1 | $227.95 | |
| 25 | 3406-058 | BUFFER,SWGARM GUARD | 1 | $82.95 | |
| 26 | 3423-671 | WASHER, BUFFER | 1 | $1.95 | |
| 27 | 3423-704 | RIVET, BUFFER | 1 | $3.02 | |
| 28 | 3423-756 | BOLT, GUARD | 1 | $10.97 | |
| 29 | 3423-648 | BOLT, GUARD CENTER | 1 | $6.34 | |
| 30 | 3007-410 | WASHER | 1 | $2.75 | |
| 31 | 3406-123 | CAP, RR SWINGING ARM | 1 | $26.95 | |
| 32 | 3406-124 | BOOT, CHAIN ADJUSTER BOLT | 1 | $17.95 |
