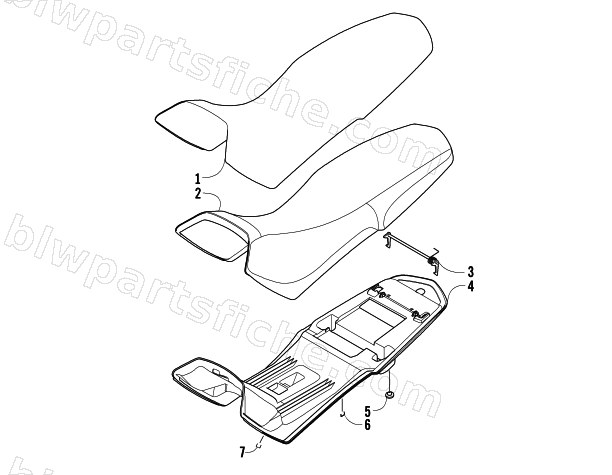

2008 Arctic Cat 400 DVX — SEAT ASSEMBLY
2008 400 DVX
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 1506-300 | SEAT,ASSEMBLY-DVX | 1 | $390.95 | |
| 1 | 1506-297 | COVER,SEAT | 1 | $129.95 | |
| 2 | 1506-298 | FOAM,SEAT-DVX (ILD 89-109 .48R/2.4) | 1 | $163.95 | |
| 3 | 1506-359 | LATCH,SEAT-WELDMENT | 1 | $45.95 | |
| 4 | 1506-299 | BASE,SEAT | 1 | $135.95 | |
| 5 | 0406-877 | BUMPER,SEAT | 1 | $3.57 | |
| 6 | 0624-528 | STAPLE,5/16L X 1/2W-20GA SS/5000 PAK-SEA | 1 | $161.95 |
