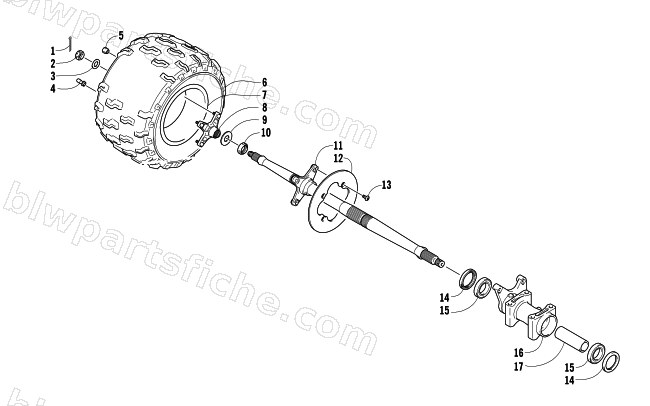

RIGHT REAR WHEEL ASSEMBLY
2008 400 DVX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3423-609 | COTTER PIN | 1 | $3.57 | |
| 2 | 3423-667 | NUT, HUB | 1 | $6.95 | |
| 3 | 3423-685 | WASHER | 1 | $5.51 | |
| 4 | 3406-008 | VALVE ASSY,WHEEL RIM,TR412 | 1 | $20.63 | |
| 5 | 3423-788 | NUT | 1 | $6.34 | |
| 6 | 3406-072 | TIRE,REAR | 1 | $278.95 | |
| 7 | 3406-160 | RIM,RR WHEEL(9X8.0AT) | 1 | $581.95 | |
| 8 | 3406-166 | HUB,REAR WHEEL | 1 | $309.95 | |
| 9 | 3423-687 | WASHER, REAR AXLE | 1 | $5.51 | |
| 10 | 3423-849 | NUT | 1 | $50.95 | |
| 11 | 3446-429 | AXLE COMP,REAR | 1 | $1,025.95 | |
| 12 | 3406-079 | DISC,REAR BRAKE | 1 | $145.95 | |
| 13 | 3423-649 | BOLT, BRAKE DISC | 1 | $4.95 | |
| 14 | 3406-099 | SEAL, RR AXLE BEARING DUST | 1 | $47.95 | |
| 15 | 3406-092 | BEARING, REAR AXLE | 1 | $71.95 | |
| 16 | 3406-134 | HOUSING,RR AXLE BEARING | 1 | $405.95 | |
| 17 | 3406-127 | SPACER, RR AXLE BEARING | 1 | $87.95 |
