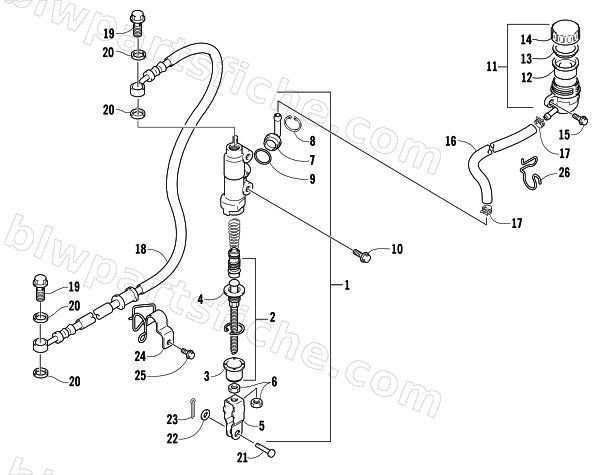

2008 Arctic Cat 400 DVX — REAR MASTER CYLINDER ASSEMBLY
2008 400 DVX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3406-083 | CYLINDER ASSY,REAR MASTER | 1 | $386.95 | |
| 2 | 3406-084 | PISTON/CUP SET | 1 | $74.95 | |
| 4 | 3406-089 | ROD,PUSH | 1 | $51.95 | |
| 5 | 3402-970 | YOKE | 1 | $45.95 | |
| 6 | 3423-599 | NUT,MASTER CYLINDER | 1 | $1.95 | |
| 7 | 3406-090 | CONNECTOR | 1 | $17.95 | |
| 8 | 3423-596 | CIRCLIP | 1 | $10.97 | |
| 9 | 3423-597 | O RING,CONECTOR | 1 | $5.92 | |
| 10 | 3423-628 | BOLT | 1 | $3.02 | |
| 11 | 3406-132 | TANK ASSY,REAR RESERVOIR | 1 | $118.95 | |
| 12 | 3406-085 | DIAPHRAGM | 1 | $37.95 | |
| 13 | 3406-086 | PLATE | 1 | $17.87 | |
| 14 | 3406-087 | CAP | 1 | $45.95 | |
| 15 | 3423-885 | BOLT,RECOIL STARTER-6X12 | 1 | $2.61 | |
| 16 | 3410-015 | HOSE,RR RESERVOIR TANK | 1 | $88.95 | |
| 17 | 3004-193 | CLAMP, HOSE-EFI THROTTLE BODY,M12 | 1 | $4.95 | |
| 18 | 3402-969 | HOSE, REAR BRAKE | 1 | $108.95 | |
| 19 | 3423-719 | BOLT | 1 | $6.34 | |
| 20 | 3006-112 | GASKET 02 660 L/C | 1 | $9.59 | |
| 21 | 3423-703 | PIN | 1 | $5.78 | |
| 22 | 0693-556 | WASHER, 8.5X14X1.6 | 1 | $3.69 | |
| 23 | 3423-606 | PIN, COTTER | 1 | $3.02 | |
| 24 | 3423-790 | CLAMP, RR BRAKE HOSE | 1 | $32.95 | |
| 25 | 3423-600 | BOLT | 1 | $2.06 | |
| 26 | 3406-091 | GUIDE,RR RSVR TANK HOSE | 1 | $20.95 |
