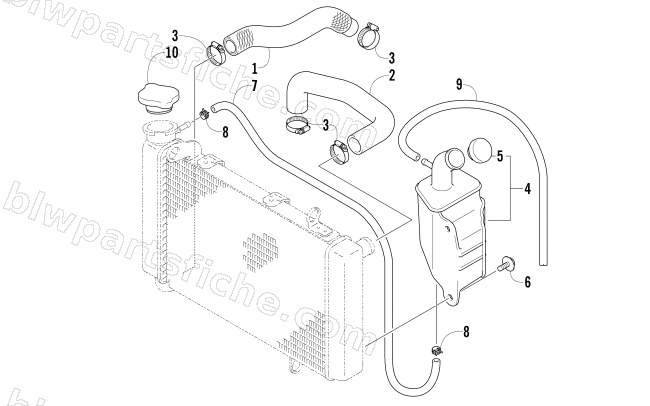

RADIATOR HOSE ASSEMBLY
2008 400 DVX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3413-030 | HOSE,RADIATOR OUTLET | 1 | $64.95 | |
| 2 | 3413-029 | HOSE,RADIATOR INLET | 1 | $48.95 | |
| 3 | 3006-324 | CLAMP '02 440 SNO PRO | 1 | $29.95 | |
| 4 | 3413-031 | TANK ASSY,RESERVOIR | 1 | $118.95 | |
| 5 | 3413-032 | CAP,RESERVOIR TANK | 1 | $13.95 | |
| 6 | 3423-654 | SCREW | 1 | $4.54 | |
| 7 | 3413-034 | HOSE,RESERVOIR TANK IN | 1 | $29.95 | |
| 8 | 3423-480 | CLIP | 1 | $4.95 | |
| 9 | 3413-033 | HOSE,RESERVOIR TANK INLET | 1 | $25.95 | |
| 10 | 3413-027 | CAP,RADIATOR(1.1) | 1 | $85.95 |
