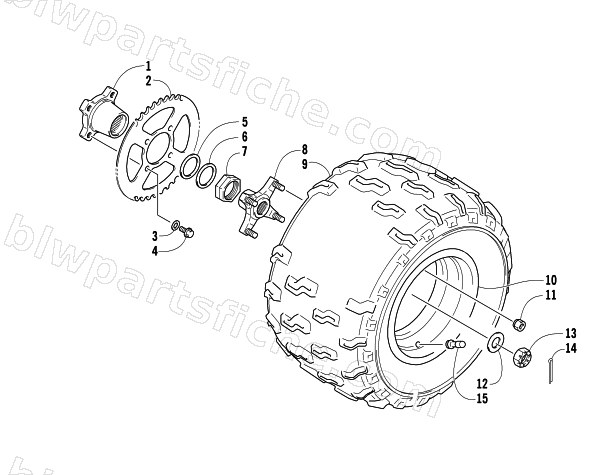

LEFT REAR WHEEL ASSEMBLY
2008 400 DVX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3446-412 | FLANGE,REAR SPROCKET MTG | 1 | $324.95 | |
| 2 | 3446-413 | SPROCKET,REAR | 1 | $91.95 | |
| 3 | 3423-683 | WASHER | 1 | $4.13 | |
| 4 | 3423-642 | BOLT | 1 | $5.51 | |
| 5 | 3423-852 | WASHER,REAR AXLE NO. 2 | 1 | $10.95 | |
| 6 | 3423-851 | WASHER,REAR AXLE NO. 1 | 1 | $11.95 | |
| 7 | 3423-850 | NUT | 1 | $81.95 | |
| 8 | 3406-166 | HUB,REAR WHEEL | 1 | $309.95 | |
| 9 | 3406-072 | TIRE,REAR | 1 | $278.95 | |
| 10 | 3406-160 | RIM,RR WHEEL(9X8.0AT) | 1 | $581.95 | |
| 11 | 3423-788 | NUT | 1 | $6.34 | |
| 12 | 3423-685 | WASHER | 1 | $5.51 | |
| 13 | 3423-667 | NUT, HUB | 1 | $6.95 | |
| 14 | 3423-609 | COTTER PIN | 1 | $3.57 | |
| 15 | 3406-008 | VALVE ASSY,WHEEL RIM,TR412 | 1 | $20.63 |
