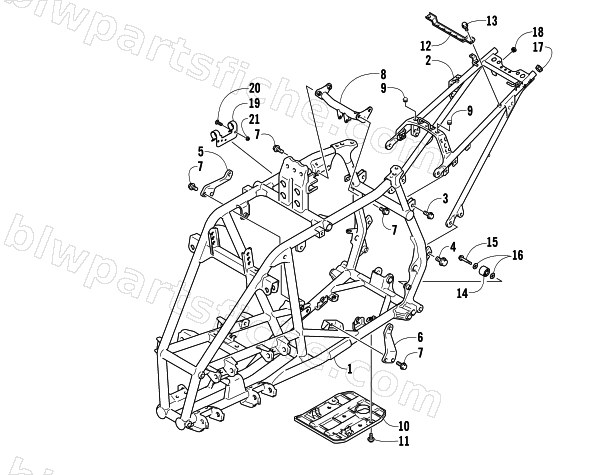

FRAME ASSEMBLY
2008 400 DVX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3406-146 | FRAME COMP (GREY) | 1 | $1,435.95 | |
| 2 | 3406-147 | RAIL COMP,SEAT | 1 | $815.95 | |
| 3 | 3423-779 | BOLT, UPPER | 1 | $3.30 | |
| 4 | 3423-478 | BOLT, M10 X 20 | 1 | $3.95 | |
| 5 | 3406-105 | PLATE, MOUNT FRONT RH | 1 | $67.95 | |
| 6 | 3406-106 | PLATE, MOUNT FRONT LH | 1 | $67.95 | |
| 7 | 3007-432 | BOLT | 1 | $3.44 | |
| 8 | 3406-168 | PLATE, MOUNT UPPER | 1 | $126.95 | |
| 9 | 3406-016 | CUSHION,SEAT MOUNT FRONT | 1 | $13.73 | |
| 10 | 3406-006 | PROTECTOR,ENGINE | 1 | $74.95 | |
| 11 | 3423-653 | BOLT | 1 | $3.02 | |
| 12 | 3406-162 | PLATE,BATTERY | 1 | $35.95 | |
| 13 | 3005-985 | SCREW, CKP SENSOR | 1 | $4.95 | |
| 14 | 3446-381 | ROLLER COMP,CHAIN | 1 | $112.95 | |
| 15 | 3423-631 | BOLT | 1 | $3.71 | |
| 16 | 3423-696 | WASHER | 1 | $2.95 | |
| 17 | 3406-013 | CAP,FR GRIP | 1 | $17.87 | |
| 18 | 0423-534 | GROMMET,TAILIGHT | 1 | $3.71 | |
| 19 | 1506-413 | CLAMP,REVERSE-PAINTED | 1 | $15.11 | |
| 20 | 0423-419 | SCREW,MACH-TSTRH-M6-1.0 X 16 BLACK | 1 | $0.95 | |
| 21 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 |
