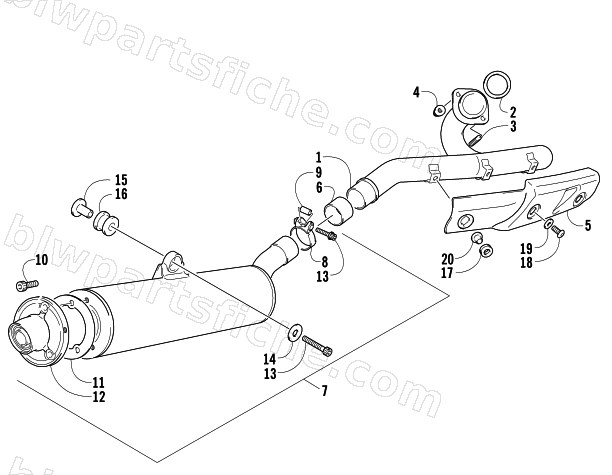

EXHAUST ASSEMBLY
2008 400 DVX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3512-007 | PIPE COMP,EXH | 1 | $259.95 | |
| 2 | 3412-003 | GASKET,EXH PIPE | 1 | $37.95 | |
| 3 | 3007-419 | STUD BOLT | 1 | $4.95 | |
| 4 | 3423-868 | NUT | 1 | $3.02 | |
| 5 | 3412-006 | COVER, EXHAUST PIPE | 1 | $114.95 | |
| 6 | 3412-004 | CONNECTOR,MUFFLER JOINT | 1 | $56.95 | |
| 7 | 3512-006 | BODY COMP,MUFFLER | 1 | $784.95 | |
| 8 | 3423-740 | CLAMP | 1 | $35.95 | |
| 9 | 3423-739 | SPACER | 1 | $6.95 | |
| 10 | 3423-645 | BOLT | 1 | $4.13 | |
| 11 | 3412-008 | ARRESTER | 1 | $164.95 | |
| 12 | 3412-005 | GASKET,MUFFLER | 1 | $12.95 | |
| 13 | 3423-613 | BOLT | 1 | $5.51 | |
| 14 | 0694-024 | WASHER,8.5X30X2.3 | 1 | $4.26 | |
| 15 | 3423-694 | SPACER | 1 | $13.73 | |
| 16 | 3423-718 | CUSHION | 1 | $20.63 | |
| 17 | 3423-715 | CUSHION, EXHAUST PIPE COVER | 1 | $20.63 | |
| 18 | 3423-661 | SCREW, EXHAUST PIPE COVER | 1 | $3.57 | |
| 19 | 3423-574 | WASHER,EXHAUST PIPE COVER | 1 | $2.06 | |
| 20 | 3423-575 | SPACER,EXHAUST PIPE COVER | 1 | $8.21 |
