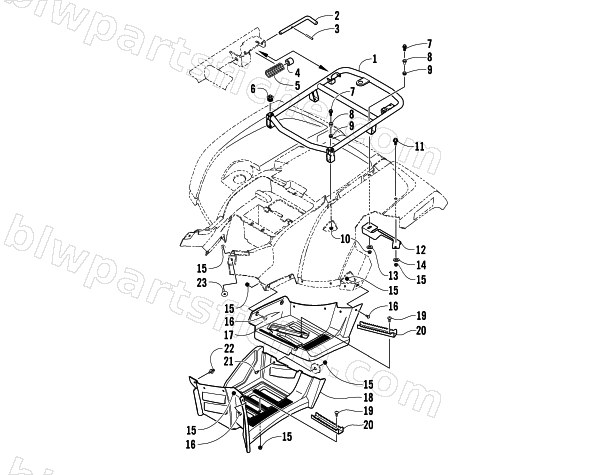

2008 Arctic Cat 400 AUTOMATIC TRANSMISSION 4X4 TRV — REAR RACK AND FOOTWELL ASSEMBLIES
2008 400 AUTOMATIC TRANSMISSION 4X4 TRV
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2506-221 | RACK,REAR FRAME-ASSY (SHORT) | 1 | $272.95 | |
| 2 | 0541-504 | PIN,MRP-ASSY | 1 | $20.63 | |
| 6 | 0441-592 | BUSHING,RACK FRAME | 1 | $4.26 | |
| 7 | 8410-835 | SCREW,CAP-HFH M8X1.25X35 CL8.8 RIE BLK | 1 | $2.06 | |
| 8 | 0423-669 | SPACER,STEEL | 1 | $1.37 | |
| 9 | 0423-465 | GROMMET,RUBBER-12.7X23.8125 | 1 | $3.16 | |
| 10 | 8432-802 | NUT,HEX-THK NYL M8X1.25 CL10 Z&Y | 1 | $0.68 | |
| 11 | 0423-654 | SCREW,SHOULDER-HFH M6-1.0 X 18 CL8.8 BLK | 1 | $1.37 | |
| 12 | 2506-092 | BRACKET,REAR FENDER SUPPORT-RH-PAINTED | 1 | $26.95 | |
| 12 | 2506-093 | BRACKET,REAR FENDER SUPPORT-LH-PAINTED | 1 | $26.95 | |
| 13 | 0423-087 | WASHER,5/16 X 1 1/8-1/16 -Z&Y | 1 | $0.40 | |
| 14 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 15 | 0423-540 | NUT,FLANGE-LOCK-M6 | 1 | $0.95 | |
| 16 | 0423-419 | SCREW,MACH-TSTRH-M6-1.0 X 16 BLACK | 1 | $0.95 | |
| 17 | 2406-042 | FOOTWELL,REAR-RH | 1 | $105.95 | |
| 17 | 2406-043 | FOOTWELL,REAR-LH | 1 | $105.95 | |
| 18 | 1506-813 | FOOTWELL,AUTO-ROUTED-RH | 1 | $105.95 | |
| 18 | 2406-471 | R/B 8506-667 | 1 | $114.95 | |
| 19 | 0423-355 | SCREW, SHOULDER-M6-1.0 X 18-BLK | 1 | $0.95 | |
| 20 | 5506-497 | FOOTPEG,BLACK | 1 | $16.49 | |
| 21 | 8477-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&BLK | 1 | $0.54 | |
| 22 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 23 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 |
