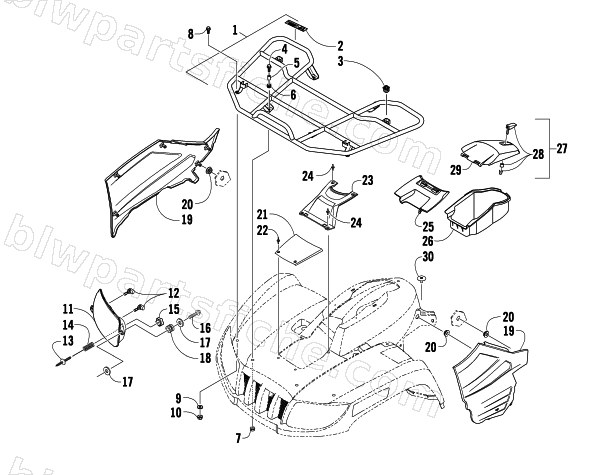

FRONT RACK AND HEADLIGHT ASSEMBLIES
2008 400 AUTOMATIC TRANSMISSION 4X4 TRV
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2506-106 | RACK,FRONT W/FENCE-ASSEMBLY | 1 | $324.95 | |
| 2 | 0411-576 | DECAL,WARNING-TRV RACK (100 LB.) | 1 | $24.77 | |
| 3 | 0441-592 | BUSHING,RACK FRAME | 1 | $4.26 | |
| 4 | 8410-830 | SCREW,CAP-HFH M8X1.25X30 CL8.8 RIE BLK | 1 | $1.09 | |
| 5 | 0423-669 | SPACER,STEEL | 1 | $1.37 | |
| 6 | 0423-465 | GROMMET,RUBBER-12.7X23.8125 | 1 | $3.16 | |
| 7 | 8432-802 | NUT,HEX-THK NYL M8X1.25 CL10 Z&Y | 1 | $0.68 | |
| 8 | 0423-654 | SCREW,SHOULDER-HFH M6-1.0 X 18 CL8.8 BLK | 1 | $1.37 | |
| 9 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 10 | 0423-540 | NUT,FLANGE-LOCK-M6 | 1 | $0.95 | |
| 11 | 0509-044 | HEADLIGHT,RH-ASSY | 1 | $163.95 | |
| 11 | 0509-035 | HEADLIGHT, LH - ASSY | 1 | $163.95 | |
| 12 | 0409-055 | BULB,HEADLIGHT-881 | 1 | $20.95 | |
| 13 | 0423-514 | STUD,DOUBLE END-M5X.8 | 1 | $4.95 | |
| 14 | 0423-522 | SPRING,ADJUSTMENT-HEADLIGHT | 1 | $1.92 | |
| 15 | 0423-513 | KNOB,ADJUSTMENT-M5 | 1 | $5.65 | |
| 16 | 0623-785 | SCREW,SELF TAP-HWH #10-16 X 1 TYPE B Z&Y | 1 | $0.68 | |
| 17 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 18 | 0423-447 | GROMMET,GAUGE MOUNT | 1 | $2.19 | |
| 19 | 2406-326 | PANEL,SIDE-RH (400 TRV) | 1 | $66.95 | |
| 19 | 2406-327 | PANEL,SIDE-LH (400 TRV) | 1 | $66.95 | |
| 20 | 0423-678 | GROMMET,PANEL-SIDE | 1 | $2.06 | |
| 21 | 1406-358 | RADIATOR-ACCESS | 1 | $16.49 | |
| 22 | 0423-535 | RIVET,PLASTIC-REINSTALLABLE | 1 | $1.37 | |
| 23 | 1406-484 | COVER,STEERING POST | 1 | $17.87 | |
| 24 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 25 | 0470-513 | COVER, STORAGE BOX | 1 | $22.01 | |
| 26 | 1406-573 | BOX,STORAGE | 1 | $26.95 | |
| 27 | 2506-234 | LID,STORAGE BOX-W/LATCH | 1 | $32.95 | |
| 28 | 1406-599 | LATCH,SWELL (SOUTHCO) | 1 | $17.87 | |
| 29 | 0470-514 | LID, STORAGE BOX | 1 | $24.77 | |
| 30 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 |
