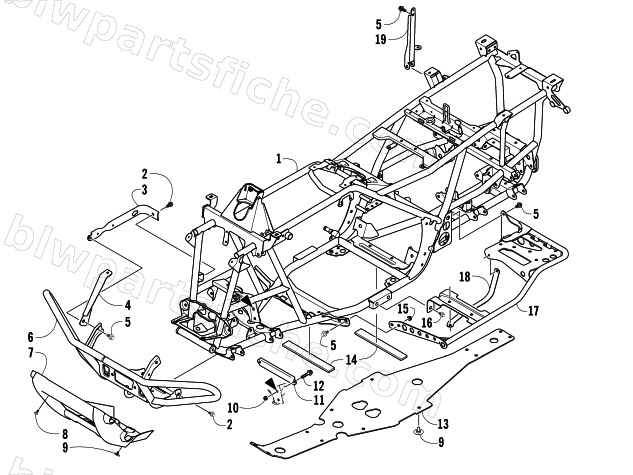

2008 Arctic Cat 400 AUTOMATIC TRANSMISSION 4X4 TRV — FRAME AND RELATED PARTS
2008 400 AUTOMATIC TRANSMISSION 4X4 TRV
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2506-531 | FRAME,MAIN-BLACK(400 TRV) | 1 | $1,525.95 | |
| 2 | 8409-020 | SCREW,CAP-HFH M10X1.25X20 CL10.9 Z&Y | 1 | $0.54 | |
| 3 | 1506-596 | CHANNEL,BUMPER MOUNTING-BLACK | 1 | $30.95 | |
| 4 | 1506-562 | BRACKET,BUMPER-RH-BLACK | 1 | $30.95 | |
| 4 | 1506-563 | BRACKET,BUMPER-LH-BLACK | 1 | $30.95 | |
| 5 | 8408-816 | SCREW,CAP-HFH M8X1.25X16 CL8.8 Z&Y | 1 | $0.68 | |
| 6 | 1506-855 | BUMPER,FRONT-BLACK (A-BODY) | 1 | $208.95 | |
| 7 | 1406-360 | FASCIA,BUMPER-FRONT (BLACK) | 1 | $54.95 | |
| 8 | 0423-419 | SCREW,MACH-TSTRH-M6-1.0 X 16 BLACK | 1 | $0.95 | |
| 9 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 10 | 8428-002 | NUT,HEX FLG- CLINCH LOCK- M10-1.25 Z&Y | 1 | $5.09 | |
| 11 | 2516-852 | BRACE,A-ARM-PTD BLACK | 1 | $20.63 | |
| 12 | 8409-025 | SCREW,CAP-HFH M10X1.25X25 CL10.9 Z&Y | 1 | $1.50 | |
| 13 | 2406-091 | PANEL,BELLY | 1 | $187.95 | |
| 14 | 0406-289 | PAD,BATTERY-TOP RR | 1 | $1.78 | |
| 15 | 8424-802 | NUT,HEX-FLG M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 16 | 8409-016 | SCREW,CAP-HFH M10X1.25X16 CL10.9 Z&Y | 1 | $1.50 | |
| 17 | 1506-848 | FOOTREST,RH-WELDMENT | 1 | $156.95 | |
| 17 | 1506-849 | FOOTREST,LH-WELDMENT | 1 | $156.95 | |
| 18 | 2406-216 | STRAP,FOOTREST SUPPORT-RH | 1 | $20.63 | |
| 18 | 2406-217 | STRAP,FOOTREST SUPPORT-LH | 1 | $20.63 | |
| 19 | 2506-447 | BRACKET,FUEL TANK-BLACK | 1 | $25.95 |
