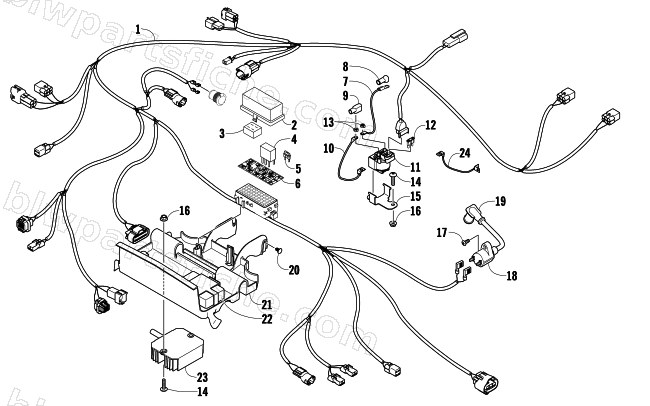

2008 Arctic Cat 366 AUTOMATICTRANSMISSION 4X4 FIS — WIRING HARNESS ASSEMBLY
2008 366 AUTOMATICTRANSMISSION 4X4 FIS
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3313-437 | HARNESS,MAIN (08 350A FIS) | 1 | $929.95 | |
| 2 | 0530-008 | COVER, PDM - ASSY | 1 | $34.95 | |
| 3 | 0430-037 | HOLDER,SPARE FUSE-FOAM | 1 | $3.02 | |
| 4 | 0430-033 | RELAY, SPDT-5P 12V/30A | 1 | $27.95 | |
| 5 | 0430-032 | FUSE, MINI-10A | 1 | $3.02 | |
| 5 | 0430-031 | FUSE, MINI-15A | 1 | $4.54 | |
| 5 | 0430-030 | FUSE, MINI-30A | 1 | $2.88 | |
| 6 | 0411-837 | DECAL,POWER DISTRIBUTION MODULE | 1 | $10.97 | |
| 7 | 3313-527 | CABLE,SOLENOID/STARTER | 1 | $26.95 | |
| 9 | 0645-327 | BOOT,TERMINAL-SOLENOID | 1 | $1.64 | |
| 10 | 3313-526 | CABLE,BATTERY/SOLENOID | 1 | $16.49 | |
| 11 | 3313-464 | RELAY,STARTER | 1 | $47.95 | |
| 12 | 0630-098 | FUSE,30 AMP ATO/ATC | 1 | $8.21 | |
| 13 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 14 | 3304-569 | BOLT FLANGE 6*25 | 1 | $0.81 | |
| 15 | 3313-467 | BRACKET,MOUNTING-SOLENOID | 1 | $4.54 | |
| 16 | 3304-654 | NUT FLANGE 6MM | 1 | $1.23 | |
| 17 | 3304-029 | BOLT WASH 5*16 | 1 | $0.81 | |
| 18 | 3323-216 | COIL,IGNITION | 1 | $31.95 | |
| 19 | 3303-831 | CAP ASSY NOISE | 1 | $23.39 | |
| 20 | 3323-166 | PIN,XMAS TREE | 1 | $2.95 | |
| 21 | 3313-273 | TRAY,ELECTRICAL | 1 | $23.39 | |
| 22 | 3313-436 | CDI UNIT | 1 | $275.95 | |
| 23 | 3306-413 | REG RECT COMP | 1 | $219.95 | |
| 24 | 3313-525 | CABLE,BATTERY/ENGINE | 1 | $37.95 |
