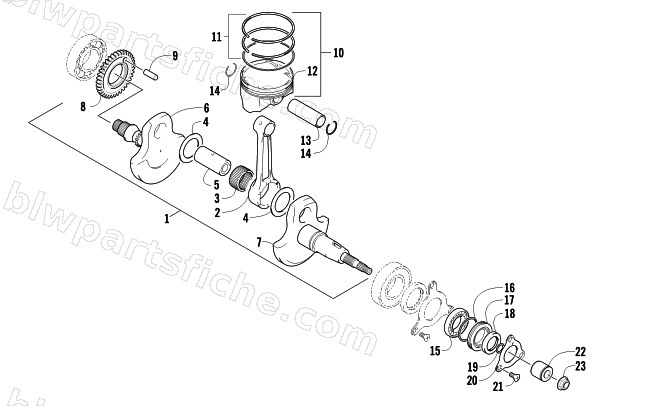

2008 Arctic Cat 366 AUTOMATICTRANSMISSION 4X4 FIS — CRANKSHAFT ASSEMBLY
2008 366 AUTOMATICTRANSMISSION 4X4 FIS
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0805-013 | CRANKSHAFT ASSEMBLY | 1 | $1,010.95 | |
| 3 | 0832-018 | BEARING | 1 | $163.95 | |
| 4 | 0828-045 | GASKET,PLUG-34.2x52x1 | 1 | $16.49 | |
| 5 | 0805-043 | PIN,CRANK | 1 | $85.95 | |
| 8 | 0805-020 | GEAR, CRANK BALANCER DRIVE | 1 | $144.95 | |
| 9 | 0805-168 | PIN,CRANKSHAFT,RIGHT | 1 | $3.57 | |
| 10 | 0805-169 | PISTON ASSY,366(PISTON,RINGS,C-CLIP,PIN) | 1 | $203.95 | |
| 11 | 0805-170 | RING-SET,PISTON | 1 | $85.95 | |
| 12 | 0805-021 | PISTON | 1 | $148.95 | |
| 13 | 0805-023 | PIN,PISTON | 1 | $37.95 | |
| 14 | 0831-060 | CIRCLIP,PISTON PIN | 1 | $3.02 | |
| 15 | 0832-053 | BEARING,CONRAD S/R-47 X 25 X 8 | 1 | $58.95 | |
| 16 | 0830-021 | O-RING, 44.7 ID X 2.4 W | 1 | $5.59 | |
| 17 | 0820-037 | SPACER | 1 | $26.95 | |
| 18 | 0837-015 | KIT,SEAL | 1 | $17.87 | |
| 19 | 0830-153 | O-RING,STARTER CUP | 1 | $2.61 | |
| 20 | 0805-178 | RETAINER,OIL SEAL | 1 | $6.47 | |
| 21 | 0826-145 | SCREW,PFH,M6X1X8 | 1 | $1.50 | |
| 22 | 0820-064 | BUSHING,MAG. COVER OIL SEAL | 1 | $17.87 | |
| 23 | 3303-333 | R/B 3307-058 | 1 | $0.95 |
