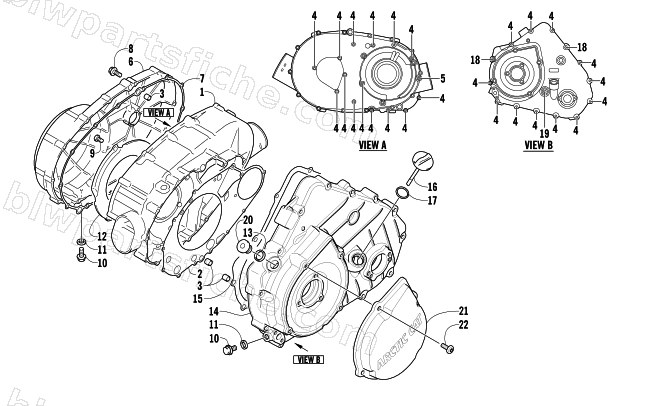

2008 Arctic Cat 366 AUTOMATICTRANSMISSION 4X4 FIS — CLUTCH/V-BELT/MAGNETO COVER ASSEMBLY
2008 366 AUTOMATICTRANSMISSION 4X4 FIS
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0806-026 | COVER, CLUTCH | 1 | $429.95 | |
| 2 | 0830-055 | GASKET | 1 | $30.95 | |
| 3 | 0829-046 | PIN,DOWEL | 1 | $3.44 | |
| 4 | 3307-053 | BOLT FLANGE SH 6*40 | 1 | $2.75 | |
| 5 | 0826-066 | ACS SCREW,HFH-M6-1x80 | 1 | $2.33 | |
| 6 | 0806-027 | COVER, V-BELT | 1 | $272.95 | |
| 7 | 0830-056 | GASKET, V-BELT COVER | 1 | $50.95 | |
| 8 | 3303-386 | BOLT FLANGE SH 6*35 | 1 | $2.06 | |
| 9 | 0826-144 | SCREW,PPH,M6X1X12 | 1 | $1.50 | |
| 10 | 3303-365 | R/B 3304-544 | 1 | $0.95 | |
| 11 | 3303-591 | WASHER 8MM | 1 | $0.81 | |
| 12 | 0806-103 | PLATE AIR INTAKE | 1 | $33.95 | |
| 13 | 0830-141 | WASHER,CRUSH 16 X 22 X 2 | 1 | $1.50 | |
| 14 | 0806-028 | COVER, MAGNETO | 1 | $501.95 | |
| 15 | 0830-057 | GASKET, MAGNETO COVER | 1 | $54.95 | |
| 16 | 0806-029 | STICK, OIL LEVEL | 1 | $5.37 | |
| 17 | 3304-102 | O-RING 18*3 | 1 | $1.78 | |
| 18 | 3304-191 | R/B 3307-062 | 1 | $0.65 | |
| 19 | 0826-068 | BOLT,FLANGE 8X140 | 1 | $4.54 | |
| 20 | 0806-099 | PLUG,TDC CHECK | 1 | $12.35 | |
| 21 | 0820-066 | COVER,MAGNETO-OUTER | 1 | $58.95 | |
| 22 | 3303-617 | R/B 3307-049 | 1 | $0.65 |
