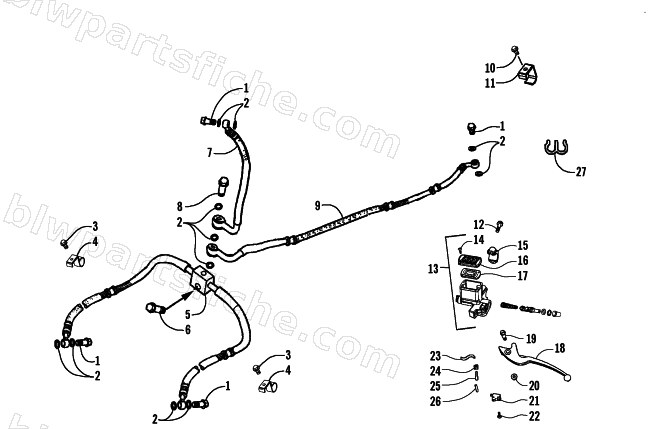

2008 Arctic Cat 250 UTILITY — HYDRAULIC BRAKE HOSE AND HAND BRAKE ASSEMBLY
2008 250 UTILITY
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3303-257 | R/B 3307-067 | 1 | $5.95 | |
| 2 | 3303-284 | WASHER OIL BOLT **(1) C.98.06.01. | 1 | $1.23 | |
| 3 | 3304-553 | BOLT FLANGE 6*12 | 1 | $0.81 | |
| 4 | 3303-919 | CLAMP FR BRK HOSE | 1 | $4.82 | |
| 5 | 3304-320 | HOSE ASSY FR R BRK | 1 | $163.95 | |
| 6 | 3304-176 | BOLT FLANGE 8*28 | 1 | $1.50 | |
| 7 | 3304-321 | HOSE ASSY C/P FR BRK | 1 | $126.95 | |
| 8 | 3304-674 | OIL BOLT 10*33 | 1 | $13.73 | |
| 9 | 3303-914 | HOSE ASSY COMBINE BRK | 1 | $187.95 | |
| 10 | 3303-356 | BOLT FLANGE 6*10 | 1 | $0.81 | |
| 11 | 3303-891 | CLAMPER RR BRK HOSE | 1 | $4.82 | |
| 12 | 3304-746 | BOLT FLANGE 6*22 (G) | 1 | $1.50 | |
| 13 | 3304-676 | M/C SET RR | 1 | $244.95 | |
| 14 | 3303-318 | SCREW FLAT 4*12 | 1 | $1.78 | |
| 15 | 3303-175 | HOLDER M/C | 1 | $10.97 | |
| 16 | 3303-923 | CAP M/C | 1 | $6.75 | |
| 17 | 3303-925 | DIAPHRAGM | 1 | $64.95 | |
| 18 | 3304-369 | LEVER L STRG HANDLE | 1 | $37.95 | |
| 19 | 3304-017 | BOLT L STEERING HANDLE | 1 | $3.02 | |
| 20 | 3304-654 | NUT FLANGE 6MM | 1 | $1.23 | |
| 21 | 3303-141 | SW ASSY RR STOP | 1 | $20.63 | |
| 22 | 3303-321 | SCREW WASHER 4*12 | 1 | $0.81 | |
| 23 | 3304-442 | LEVER PARKING | 1 | $12.35 | |
| 24 | 3304-678 | SPRING RETURN | 1 | $2.33 | |
| 25 | 3304-679 | PIN | 1 | $2.33 | |
| 26 | 3304-680 | CLIP | 1 | $2.33 | |
| 27 | 3304-675 | CLAMP TUBE | 1 | $1.64 |
