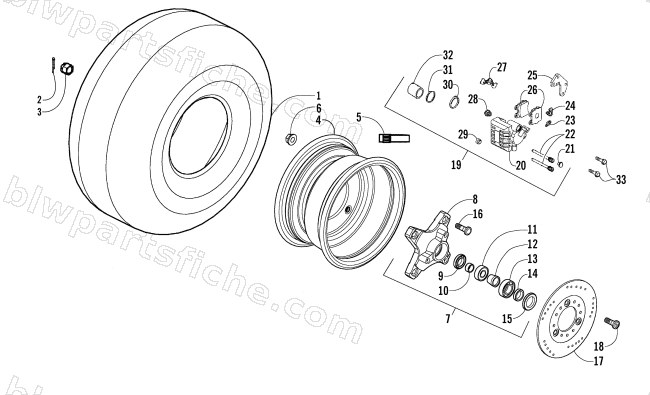

FRONT WHEELS AND BRAKE ASSEMBLY
2008 250 DVX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3304-312 | TIRE ASSY FR (KENDA) | 1 | $172.95 | |
| 2 | 3303-340 | PIN SPLIT 3*30 | 1 | $1.37 | |
| 3 | 3303-330 | NUT FLANGE CASTLE 14MM | 1 | $4.54 | |
| 4 | 3304-310 | RIM FR WHEEL | 1 | $252.95 | |
| 5 | 3304-562 | VALVE RIM (TR412) | 1 | $12.35 | |
| 6 | 3304-028 | NUT WHEEL | 1 | $2.61 | |
| 7 | 3304-311 | CONNECTOR ASSY FR | 1 | $169.95 | |
| 9 | 3304-089 | OIL SEAL 20*35*7 | 1 | $2.33 | |
| 10 | 3303-898 | COLLAR FR WHEEL SIDE A | 1 | $5.51 | |
| 11 | 3304-200 | BEARING BALL RADIAL 6004/20*42*12 | 1 | $30.95 | |
| 12 | 3303-900 | COLLAR FR WHEEL DIST | 1 | $8.21 | |
| 13 | 3304-202 | BEARING BALL RADIAL 6202/15*35*11 | 1 | $16.49 | |
| 14 | 3303-899 | COLLAR FR WHEEL SIDE B | 1 | $6.75 | |
| 15 | 3304-088 | OIL SEAL 28*42*7 | 1 | $2.33 | |
| 16 | 3304-014 | BOLT CONNECTOR | 1 | $3.02 | |
| 17 | 3303-912 | DISK FR BRK R | 1 | $108.95 | |
| 17 | 3303-918 | DISK FR BRK L | 1 | $90.95 | |
| 18 | 3304-015 | BOLT STEP HOLDER 8*24 | 1 | $2.33 | |
| 19 | 3304-313 | CALIPER ASSY FR R | 1 | $405.95 | |
| 19 | 3303-921 | CALIPER ASSY FR L | 1 | $405.95 | |
| 21 | 3304-334 | PLUG | 1 | $2.33 | |
| 22 | 3304-326 | PIN HANGER | 1 | $6.89 | |
| 23 | 3304-330 | BLEEDER | 1 | $5.92 | |
| 24 | 3304-331 | CAP BLEEDER | 1 | $2.06 | |
| 25 | 3304-317 | BRACKET ASSY R | 1 | $58.95 | |
| 25 | 3304-328 | BRACKET ASSY L | 1 | $58.95 | |
| 26 | 3303-908 | PAD SET | 1 | $58.95 | |
| 27 | 3304-315 | SPRING PAD | 1 | $4.82 | |
| 28 | 3304-322 | BOOT A | 1 | $3.16 | |
| 29 | 3304-329 | BUSH PIN | 1 | $5.37 | |
| 30 | 3303-922 | SEAL PISTON (HAND BRAKE) | 1 | $10.97 | |
| 31 | 3303-910 | DUST SEAL (HAND BRAKE) | 1 | $10.97 | |
| 32 | 3303-909 | PISTON, CALIPER (HAND BRAKE) | 1 | $27.95 | |
| 33 | 3304-174 | R/B 3304-565 | 1 | $1.95 |
