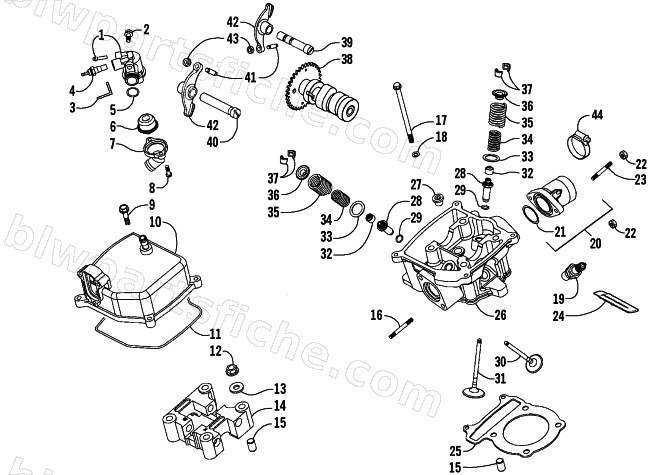

2008 Arctic Cat 250 DVX — CYLINDER HEAD ASSEMBLY
2008 250 DVX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3303-756 | CASE COMP THERMOSTAT | 1 | $23.39 | |
| 2 | 3303-617 | R/B 3307-049 | 1 | $0.65 | |
| 3 | 3303-860 | EARTH TERMINAL THERMO | 1 | $82.95 | |
| 4 | 3303-861 | THERMO UNIT ASSY | 1 | $42.95 | |
| 5 | 3304-094 | O-RING 17.8*1.9 | 1 | $1.50 | |
| 6 | 3303-755 | THERMO STAT ASSY | 1 | $42.95 | |
| 7 | 3303-757 | COVER THERMOSTAT | 1 | $20.63 | |
| 8 | 3304-118 | SCREW PAN 5*16 | 1 | $0.85 | |
| 9 | 3303-360 | BOLT FLANGE 6*25 | 1 | $0.81 | |
| 10 | 3303-660 | COVER COMP CYLN HEAD | 1 | $47.95 | |
| 11 | 3303-661 | GASKET HEAD COVER | 1 | $17.87 | |
| 12 | 3303-332 | NUT FLANGE 8MM | 1 | $0.81 | |
| 13 | 3304-048 | WASHER 8MM | 1 | $1.23 | |
| 14 | 3304-228 | HOLDER COMP CAM SHAFT | 1 | $45.95 | |
| 15 | 3303-342 | PIN DOWEL 10*16 | 1 | $1.64 | |
| 16 | 3303-249 | BOLT STUD 8*32 | 1 | $1.23 | |
| 17 | 3303-390 | BOLT FLANGE SH 6*100 | 1 | $1.95 | |
| 18 | 3304-049 | WASHER A 6MM | 1 | $0.81 | |
| 19 | 0217-730 | SPARK PLUG-NGK DPR7EA-9 | 1 | $4.54 | |
| 20 | 3305-460 | PIPE ASSY INLET | 1 | $45.95 | |
| 21 | 3304-097 | O-RING 33.5*3 | 1 | $1.50 | |
| 22 | 3304-124 | NUT HEX 6MM | 1 | $0.81 | |
| 23 | 3304-114 | BOLT STUD 6*28 | 1 | $0.95 | |
| 24 | 3304-157 | CLIP 2*70 | 1 | $1.92 | |
| 25 | 3303-659 | GASKET CYLINDER HEAD | 1 | $47.95 | |
| 26 | 3303-655 | HEAD COMP CYLN | 1 | $509.95 | |
| 27 | 3303-656 | BOLT SEALING 12MM | 1 | $4.13 | |
| 30 | 3303-680 | VALVE INLET | 1 | $37.95 | |
| 31 | 3303-681 | VALVE EXHAUST | 1 | $58.95 | |
| 32 | 3303-657 | SEAL VALVE STEM | 1 | $13.73 | |
| 33 | 3303-043 | SEAT VALVE SPG OUTER | 1 | $2.61 | |
| 34 | 3303-683 | SPG VALVE INNER | 1 | $5.37 | |
| 35 | 3303-682 | SPG VALVE OUTER | 1 | $6.75 | |
| 36 | 3303-042 | RETAINER VALVE SPRING | 1 | $5.92 | |
| 37 | 3303-044 | COTTER VALVE | 1 | $10.97 | |
| 38 | 3304-235 | SHAFT COMP CAM | 1 | $231.95 | |
| 39 | 3303-674 | SHAFT COMP IN ROCKER ARM (INTAKE) | 1 | $20.63 | |
| 40 | 3303-675 | SHAFT EX ROCKER | 1 | $12.35 | |
| 41 | 3304-007 | SCREW TAPPET ADJUSTING | 1 | $3.57 | |
| 42 | 3303-673 | ARM VALVE ROCKER | 1 | $85.95 | |
| 43 | 3304-026 | NUT TAPPET ADJUSTING | 1 | $1.23 | |
| 44 | 3305-410 | BAND 49 AIR/C CONNECTING TUBE | 1 | $4.82 |
