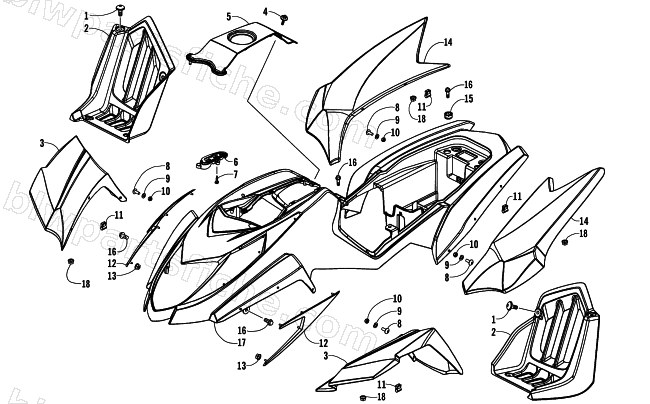

BODY PANEL ASSEMBLY
2008 250 DVX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3304-404 | BOLT SPECIAL 6*16 | 1 | $1.78 | |
| 2 | 3306-050 | MUDGUARD,R FLOOR | 1 | $50.95 | |
| 2 | 3306-051 | MUDGUARD,L FLOOR | 1 | $50.95 | |
| 3 | 3304-387 | FENDER R FR (RED) | 1 | $58.95 | |
| 3 | 3304-389 | FENDER L FR (RED) | 1 | $38.59 | |
| 3 | 3304-388 | FENDER R FR (LIME) | 1 | $56.95 | |
| 3 | 3304-390 | FENDER L FR (LIME) | 1 | $41.79 | |
| 4 | 3304-029 | BOLT WASH 5*16 | 1 | $0.81 | |
| 5 | 3304-248 | COVER TANK (BLACK) | 1 | $30.95 | |
| 6 | 3304-381 | GUIDE COVER CHANGE HANDLE | 1 | $16.49 | |
| 7 | 3304-650 | SCREW TAPPING 5*16 (CIRCLE HEAD) | 1 | $1.50 | |
| 8 | 3304-406 | BOLT SPECIAL 6*16 | 1 | $1.78 | |
| 9 | 3304-432 | WASHER PLAIN 7MM | 1 | $0.81 | |
| 10 | 3304-431 | NUT LOCK | 1 | $1.23 | |
| 11 | 3304-683 | CLIP FENDER MOUNTNG | 1 | $3.02 | |
| 12 | 3304-382 | PANEL R TRIM (RED) | 1 | $13.73 | |
| 12 | 3304-385 | PANEL L TRIM (RED) | 1 | $13.73 | |
| 12 | 3304-384 | PANEL R TRIM (LIME) | 1 | $13.73 | |
| 12 | 3304-386 | PANEL L TRIM (LIME) | 1 | $13.73 | |
| 13 | 3304-418 | NUT STAMPED | 1 | $1.23 | |
| 14 | 3304-393 | FENDER R REAR (RED) | 1 | $58.95 | |
| 14 | 3304-397 | FENDER L REAR (RED) | 1 | $38.59 | |
| 14 | 3304-394 | FENDER R REAR (LIME) | 1 | $58.95 | |
| 14 | 3304-398 | FENDER L REAR (LIME) | 1 | $58.95 | |
| 15 | 3303-232 | RUBBER REAR FENDER | 1 | $1.92 | |
| 16 | 3304-587 | BOLT WASHER 6*16 | 1 | $1.23 | |
| 17 | 3304-380 | BODY MAIN (BLACK) | 1 | $227.95 | |
| 18 | 3304-417 | NUT,STAMPED | 1 | $1.23 |
