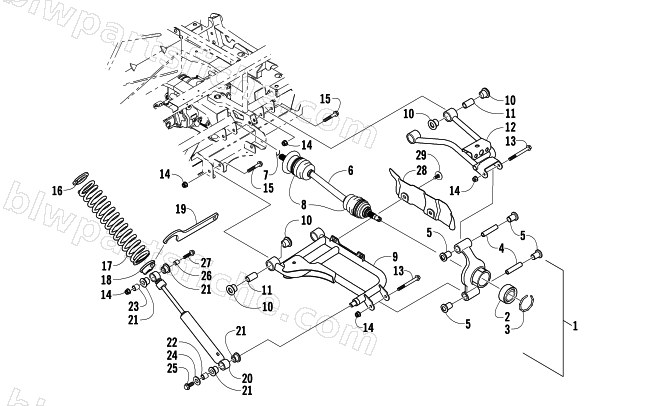

2007 Arctic Cat PROWLER XT 650 H1 AUTOMATIC 4X4 — REAR SUSPENSION ASSEMBLY
2007 PROWLER XT 650 H1 AUTOMATIC 4X4
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0504-551 | KNUCKLE,REAR-ASSY | 1 | $252.95 | |
| 2 | 1402-027 | BEARING, WHEEL | 1 | $43.95 | |
| 3 | 0423-423 | RING,RETAINING (HOUSING ID:55) | 1 | $4.13 | |
| 4 | 0403-437 | COLLAR,SUSPENSION BUSHING-REAR K | 1 | $6.89 | |
| 5 | 0403-283 | BUSHING,REAR SUSPENSION | 1 | $2.75 | |
| 6 | 1436-411 | KIT,HALFSHAFT REMOVAL | 1 | $425.95 | |
| 7 | 0423-845 | CLIP,RETAINING-INBOARD | 1 | $0.95 | |
| 8 | 1436-207 | KIT,CV BOOT-UNIVERSAL | 1 | $73.95 | |
| 9 | 0504-552 | A-ARM,REAR LOWER-RH-ASSY (BLACK) | 1 | $268.95 | |
| 9 | 0504-553 | A-ARM,REAR LOWER-LH-ASSY (BLACK) | 1 | $268.95 | |
| 10 | 0403-409 | BUSHING,A-ARM SUSPENSION | 1 | $2.47 | |
| 11 | 0403-438 | COLLAR,SUSPENSION BUSHING-A-ARM | 1 | $4.95 | |
| 12 | 0504-562 | A-ARM,REAR UPPER-RH-ASSY (BLACK) | 1 | $162.95 | |
| 12 | 0504-563 | A-ARM,REAR UPPER-LH-ASSY (BLACK) | 1 | $148.95 | |
| 13 | 8409-000 | SCREW, CAP-HFH M10-1.25 X100 Z&Y CL10.9 | 1 | $1.37 | |
| 14 | 8428-002 | NUT,HEX FLG- CLINCH LOCK- M10-1.25 Z&Y | 1 | $5.09 | |
| 15 | 8409-075 | SCREW,CAP-HFH M10X1.25X75 CL10.9 Z&Y | 1 | $1.92 | |
| 16 | 1603-889 | RETAINER, SPRING | 1 | $12.35 | |
| 17 | 0404-117 | SPRING,COIL BLACK (230/550 LB/IN) | 1 | $187.95 | |
| 18 | 0404-496 | ADJUSTER,CAM-SPRING | 1 | $20.63 | |
| 19 | 0441-587 | WRENCH,SPANNER-66MM | 1 | $4.95 | |
| 20 | 0404-115 | SHOCK,REAR-ASSY | 1 | $126.95 | |
| 21 | 0603-955 | BUSHING, SKI SHOCK-.045" LIP | 1 | $9.59 | |
| 22 | 1603-575 | SLEEVE,EYELET.790X.812X.635" POWDER MET | 1 | $22.01 | |
| 23 | 1603-209 | SLEEVE, EYELET - INNER - .790 TLG | 1 | $1.23 | |
| 24 | 0423-087 | WASHER,5/16 X 1 1/8-1/16 -Z&Y | 1 | $0.40 | |
| 25 | 8408-820 | SCREW,CAP-HFH M8X1.25X20 CL8.8 Z&Y | 1 | $0.68 | |
| 26 | 0404-116 | SLEEVE,SHOCK | 1 | $2.06 | |
| 27 | 8409-040 | SCREW,CAP-HFH M10X1.25X40 CL10.9 Z&Y | 1 | $1.50 | |
| 28 | 1441-004 | GUARD,BOOT-MARSH GREEN-REAR RH | 1 | $26.95 | |
| 28 | 1441-005 | GUARD,BOOT-MARSH GREEN-REAR LH | 1 | $26.95 | |
| 28 | 0441-754 | GUARD,BOOT-REAR-RH RED | 1 | $26.95 | |
| 28 | 0441-755 | GUARD,BOOT-REAR-LH RED | 1 | $26.95 | |
| 28 | 0441-758 | GUARD,BOOT-REAR-RH LIME GREEN | 1 | $30.95 | |
| 28 | 0441-759 | GUARD,BOOT-REAR-LH LIME GREEN | 1 | $30.95 | |
| 29 | 0423-545 | SCREW,BODY-SELF TAP #12 X 3/4 A Z&B | 1 | $1.09 |
