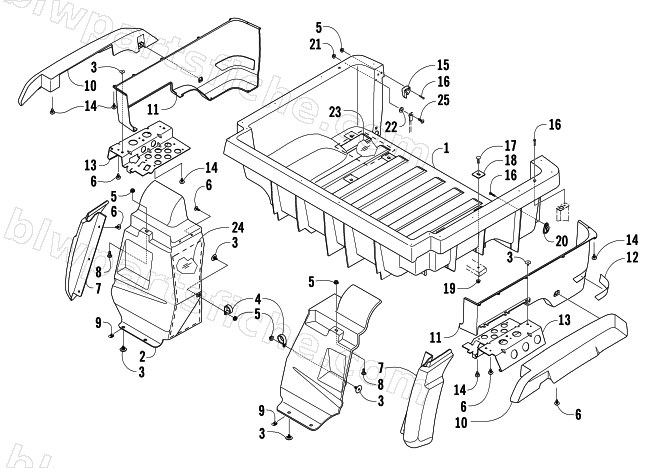

2007 Arctic Cat PROWLER XT 650 H1 AUTOMATIC 4X4 — REAR BODY PANEL AND CARGO BOX ASSEMBLY
2007 PROWLER XT 650 H1 AUTOMATIC 4X4
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2406-916 | BOX,REAR CARGO | 1 | $806.95 | |
| 2 | 2406-070 | PANEL,SPLASH-REAR-RH | 1 | $110.95 | |
| 2 | 2406-071 | PANEL,SPLASH-REAR-LH | 1 | $104.95 | |
| 3 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 4 | 0423-403 | CLAMP,TUBE-1.125"(ARDEN COV 1909 ZI) | 1 | $12.35 | |
| 5 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 | |
| 6 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 7 | 1406-810 | FENDER,REAR-LOWER-RH-MARSH GREEN | 1 | $72.95 | |
| 7 | 1406-809 | FENDER,REAR-LOWER-LH-MARSH GREEN | 1 | $72.95 | |
| 7 | 1406-795 | FENDER,REAR-LOWER-LH-RED | 1 | $80.95 | |
| 7 | 1406-802 | FENDER,REAR-LOWER-RH-LIME GREEN | 1 | $72.95 | |
| 7 | 1406-801 | FENDER,REAR-LOWER-LH-LIME GREEN | 1 | $72.95 | |
| 8 | 8476-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&Y | 1 | $0.40 | |
| 9 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 10 | 2506-660 | FENDER,REAR UPPER RH-MARSH-ASSY | 1 | $122.95 | |
| 10 | 2506-661 | FENDER,REAR UPPER LH-MARSH-ASSY | 1 | $118.95 | |
| 10 | 2506-678 | FENDER,REAR UPPER-RH-RED-ASSY | 1 | $122.95 | |
| 10 | 2506-679 | FENDER,REAR UPPER-LH-RED-ASSY | 1 | $118.95 | |
| 10 | 2506-680 | FENDER,REAR UPPER-RH-LIME-ASSY | 1 | $140.95 | |
| 10 | 2506-681 | FENDER,REAR UPPER-LH-LIME-ASSY | 1 | $135.95 | |
| 11 | 1406-762 | PANEL,BOX-RIGHT-BLACK | 1 | $58.95 | |
| 11 | 1406-761 | PANEL,BOX-LEFT-BLACK | 1 | $58.95 | |
| 12 | 1411-128 | REFLECTOR,RH-REAR | 1 | $13.73 | |
| 12 | 1411-129 | REFLECTOR,LH-REAR | 1 | $13.73 | |
| 13 | 1506-776 | BRACKET,FENDER SUPPORT-RH BLACK | 1 | $114.95 | |
| 13 | 1506-777 | BRACKET,FENDER SUPPORT-LH BLACK | 1 | $130.95 | |
| 14 | 0423-342 | SCREW,SELF TAPPING-.1875 X .75 | 1 | $0.26 | |
| 15 | 2506-665 | STRIKER,TAILGATE-LH-COATED | 1 | $17.87 | |
| 15 | 2506-034 | STRIKER,TAILGATE-RH-BLACK | 1 | $14.95 | |
| 16 | 8474-630 | SCREW,MACH-TSFH M6X1.0X30 CL8.8 BLK | 1 | $1.23 | |
| 17 | 0423-623 | BOLT,CRG-M8-1.25X30-BLK | 1 | $1.50 | |
| 18 | 1506-933 | PLATE,RETAINING-BLACK (MATTE) | 1 | $12.35 | |
| 19 | 8424-802 | NUT,HEX-FLG M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 20 | 1506-539 | BRACKET,TAILGATE-BLACK | 1 | $20.63 | |
| 21 | 0624-250 | NUT,LOCK-NSL M6-1.0 SS | 1 | $0.68 | |
| 22 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 23 | 0412-391 | SHIELD,HEAT-BOX | 1 | $6.89 | |
| 24 | 0412-392 | SHIELD,HEAT-FENDER | 1 | $5.95 | |
| 25 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 |
