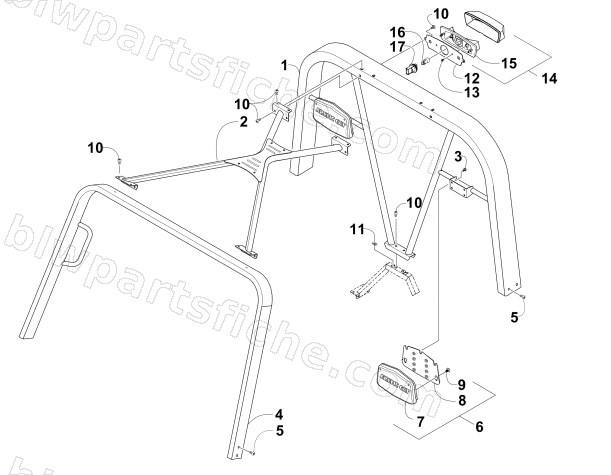

2007 Arctic Cat PROWLER XT 650 H1 AUTOMATIC 4X4 — CANOPY AND TAILLIGHT ASSEMBLY
2007 PROWLER XT 650 H1 AUTOMATIC 4X4
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1506-680 | CANOPY TUBE, REAR-PAINTED | 1 | $1,435.95 | |
| 2 | 1506-713 | CANOPY SUPPORT-PAINTED | 1 | $1,194.95 | |
| 3 | 0423-361 | SCREW,MACH-TSTRH M6-1.0 X 12 CL8.8 BLK | 1 | $0.95 | |
| 4 | 1506-665 | CANOPY TUBE,FRONT-PAINTED | 1 | $1,097.95 | |
| 5 | 0423-642 | SCREW,MACH-TSTRH M8X1.25 X 20 BLK CL8.8 | 1 | $1.23 | |
| 6 | 4406-989 | PAD,HEADREST | 1 | $26.95 | |
| 7 | 1406-884 | R/B 4406-989 | 1 | $28.95 | |
| 8 | 1506-722 | HEADREST MOUNT-PAINTED-BLACK | 1 | $89.95 | |
| 9 | 0623-544 | PLUG, CHRISTMAS TREE | 1 | $0.54 | |
| 10 | 0423-419 | SCREW,MACH-TSTRH-M6-1.0 X 16 BLACK | 1 | $0.95 | |
| 11 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 12 | 2406-069 | BRACKET,TAILLIGHT MOUNT-BLACK | 1 | $20.63 | |
| 13 | 0623-301 | SCREW,SELF TAP-HWH 10X1/2 AB Z&Y | 1 | $0.12 | |
| 14 | 0509-022 | TAILLIGHT,ASSY | 1 | $82.95 | |
| 15 | 0509-025 | HOUSING,TAILLIGHT-ASSY | 1 | $66.95 | |
| 16 | 0409-056 | BULB,TAIL LIGHT-3157 | 1 | $19.25 | |
| 17 | 0409-057 | SOCKET,TAIL LIGHT | 1 | $15.11 |
