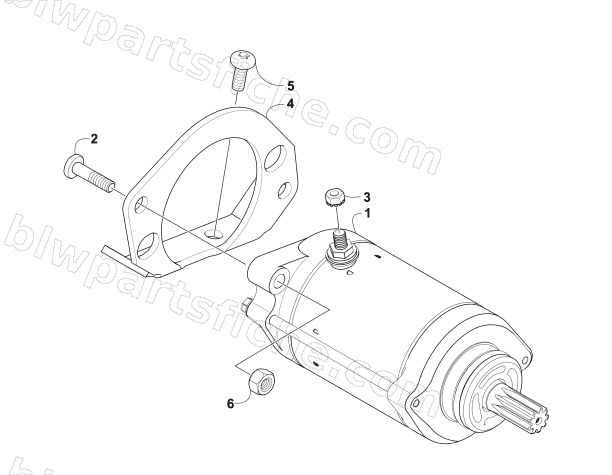

2007 Arctic Cat PROWLER 650 H1 AUTOMATIC 4X4 — STARTER MOTOR ASSEMBLY (VIN: 4UF07MPV97T330001 and Above)
2007 PROWLER 650 H1 AUTOMATIC 4X4
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0825-014 | MOTOR,STARTER-ENGINE | 1 | $260.95 | |
| 2 | 8468-630 | SCREW,MACH-TSPNH M6X1.0X30 CL8.8 BLK | 1 | $0.68 | |
| 3 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 4 | 0815-018 | BRACKET,STARTER,ADAPTER, H1 | 1 | $125.95 | |
| 5 | 8468-612 | SCREW,MACH-TSPNH M5X0.8X20 CL8.8 BLK | 1 | $1.23 | |
| 6 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 |
