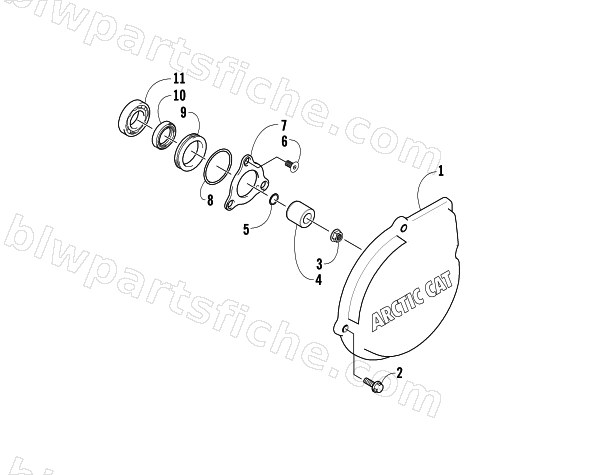

OUTER MAGNETO COVER ASSEMBLY
2007 PROWLER 650 H1 AUTOMATIC 4X4
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0820-062 | COVER, MAGNETO - OUTER | 1 | $58.95 | |
| 1 | 1436-291 | KIT,CS COVER-LH | 1 | $110.95 | |
| 2 | 0826-038 | SCREW,MACH-TSPH M6 X1X12 W/ THD LOCK | 1 | $1.37 | |
| 3 | 0827-008 | NUT, HEX FLANGE, M10 x 1.25 | 1 | $0.95 | |
| 4 | 0820-061 | BUSHING | 1 | $17.87 | |
| 5 | 0830-108 | O-RING,STARTER CUP | 1 | $1.50 | |
| 6 | 0826-031 | SCREW,MACH-TSFH M6 X1X12 W/ THD LOCK | 1 | $1.23 | |
| 7 | 0805-008 | RETAINER, OIL SEAL | 1 | $16.49 | |
| 8 | 0830-021 | O-RING, 44.7 ID X 2.4 W | 1 | $5.59 | |
| 9 | 0820-007 | SPACER, STARTER CUP | 1 | $50.95 | |
| 10 | 0830-226 | SEAL,OIL-25X48X7 | 1 | $24.77 | |
| 11 | 1602-981 | BEARING,25MMX47MMX8MM-PEER | 1 | $17.87 |
