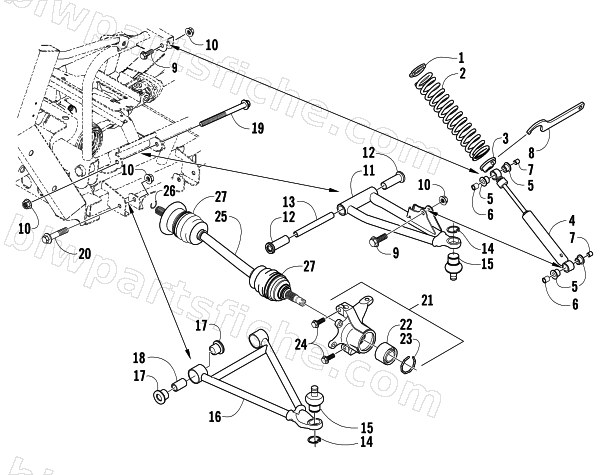

FRONT SUSPENSION ASSEMBLY
2007 PROWLER 650 H1 AUTOMATIC 4X4
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1603-889 | RETAINER, SPRING | 1 | $12.35 | |
| 2 | 0403-161 | SPRING,FRONT-BLACK (220LB/IN X 13.3) | 1 | $66.95 | |
| 3 | 0403-395 | CAM,ADJUSTER-SPRING | 1 | $20.63 | |
| 4 | 0403-147 | SHOCK,FRONT-ASSY | 1 | $122.95 | |
| 5 | 0603-955 | BUSHING, SKI SHOCK-.045" LIP | 1 | $9.59 | |
| 6 | 1603-209 | SLEEVE, EYELET - INNER - .790 TLG | 1 | $1.23 | |
| 7 | 0404-116 | SLEEVE,SHOCK | 1 | $2.06 | |
| 8 | 0441-587 | WRENCH,SPANNER-66MM | 1 | $4.95 | |
| 9 | 8409-040 | SCREW,CAP-HFH M10X1.25X40 CL10.9 Z&Y | 1 | $1.50 | |
| 10 | 8428-002 | NUT,HEX FLG- CLINCH LOCK- M10-1.25 Z&Y | 1 | $5.09 | |
| 11 | 0503-416 | A-ARM,FRONT UPPER RH-BLACK-ASSY | 1 | $260.95 | |
| 11 | 0503-417 | A-ARM,FRONT UPPER LH-BLACK-ASSY | 1 | $260.95 | |
| 12 | 0403-289 | BUSHING,UPPER A-ARM SUSPENSION | 1 | $4.13 | |
| 13 | 0403-439 | COLLAR,SUSPENSION BUSHING-UPPER A-ARM | 1 | $17.87 | |
| 14 | 0423-009 | CLIP,BALL JOINT | 1 | $1.37 | |
| 15 | 0405-483 | BALLJOINT-ASSY (DOUBLE STAKE) | 1 | $38.95 | |
| 16 | 0503-252 | A ARM,FRONT,LOWER-RH-BLK-ASSY (VP) | 1 | $155.79 | |
| 16 | 0503-253 | A ARM,FRONT,LOWER-LH-BLK-ASSY (VP) | 1 | $260.95 | |
| 17 | 0403-409 | BUSHING,A-ARM SUSPENSION | 1 | $2.47 | |
| 18 | 0403-438 | COLLAR,SUSPENSION BUSHING-A-ARM | 1 | $4.95 | |
| 19 | 0423-723 | SCREW,CAP-HFH M10-1.25X170 Z&Y CL 10.9 | 1 | $16.49 | |
| 20 | 8409-075 | SCREW,CAP-HFH M10X1.25X75 CL10.9 Z&Y | 1 | $1.92 | |
| 21 | 0505-580 | KNUCKLE,STEERING-RH ASSY | 1 | $239.95 | |
| 21 | 0505-581 | KNUCKLE,STEERING-LH ASSY | 1 | $239.95 | |
| 22 | 1402-027 | BEARING, WHEEL | 1 | $43.95 | |
| 23 | 0423-423 | RING,RETAINING (HOUSING ID:55) | 1 | $4.13 | |
| 24 | 8409-030 | SCREW,CAP-HFH M10X1.25X30 CL10.9 Z&Y | 1 | $2.47 | |
| 25 | 1502-940 | KIT,HALFSHAFT (1502-803) | 1 | $454.95 | |
| 25 | 1502-939 | KIT,HALFSHAFT (1502-802) | 1 | $454.95 | |
| 26 | 0423-844 | CLIP,RETAINING-INBOARD | 1 | $1.23 | |
| 27 | 1436-207 | KIT,CV BOOT-UNIVERSAL | 1 | $73.95 |
