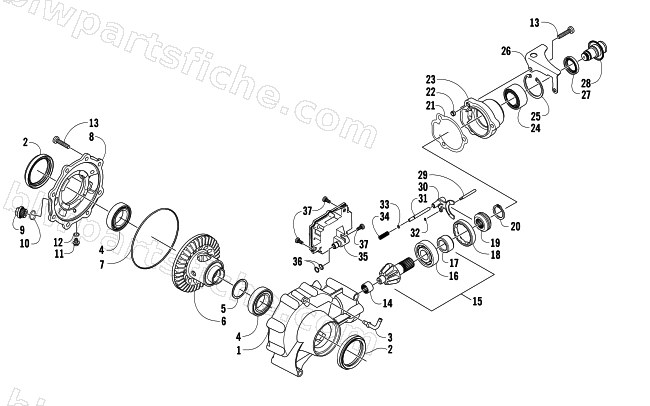

2007 Arctic Cat PROWLER 650 H1 AUTOMATIC 4X4 — FRONT DRIVE GEARCASE ASSEMBLY
2007 PROWLER 650 H1 AUTOMATIC 4X4
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 1502-129 | GEARCASE,FRONT(4.0)-ASSEMBLY(NO LOCKER) | 1 | $1,457.95 | |
| 1 | 0502-548 | HOUSING, GEARCASE - MACH | 1 | $169.95 | |
| 2 | 2402-150 | SEAL,GEARCASE-HR | 1 | $23.39 | |
| 3 | 1402-442 | BARB, 90 DEGREE | 1 | $20.63 | |
| 4 | 0402-393 | BEARING,BALL-SR(6008 Z C-O) | 1 | $17.87 | |
| 5 | 0402-405 | SHIM,41X49X1.3 | 1 | $10.97 | |
| 5 | 0402-406 | SHIM,41X49X1.4 | 1 | $10.97 | |
| 5 | 0402-407 | SHIM,41X49X1.5 | 1 | $10.97 | |
| 5 | 0402-408 | SHIM,41X49X1.6 | 1 | $12.35 | |
| 5 | 0402-409 | SHIM,41X49X1.7 | 1 | $10.97 | |
| 6 | 0502-778 | GEAR(36T4.0LSD)-WELDT | 1 | $679.95 | |
| 7 | 0423-149 | O-RING,150X 2MM | 1 | $17.87 | |
| 8 | 1502-130 | COVER,GEARCASE-MACH | 1 | $108.95 | |
| 9 | 0402-333 | PLUG, FILL | 1 | $13.73 | |
| 10 | 0423-154 | O-RING, GEARCASE,20 X 2.5MM | 1 | $3.16 | |
| 11 | 1402-210 | PLUG,DRAIN-MAGNETIC | 1 | $20.63 | |
| 12 | 0423-153 | O-RING, GEARCASE,6X1.5MM | 1 | $3.96 | |
| 13 | 0423-118 | SCREW,SELF TAP-TSPNH M8X1.25X40 | 1 | $1.78 | |
| 14 | 0402-328 | BEARING,NEEDLE (16NQ2316) | 1 | $17.87 | |
| 15 | 0502-649 | PINION(9T 4.0)-ASSY | 1 | $196.95 | |
| 16 | 0402-327 | BEARING,BALL (6305) | 1 | $26.95 | |
| 17 | 0402-336 | COLLAR, RETAINING | 1 | $50.95 | |
| 18 | 0402-357 | COLLAR,LOCKING (M64-1.5 RH) | 1 | $50.95 | |
| 19 | 0402-413 | COUPLER,DRIVE | 1 | $66.95 | |
| 20 | 0423-417 | RING,RETAINING-EXT 30 | 1 | $8.21 | |
| 21 | 0402-947 | GASKET, FLANGE | 1 | $3.16 | |
| 22 | 0402-411 | PIN,DOWEL | 1 | $6.89 | |
| 23 | 0502-528 | HOUSING,PINION-MACH | 1 | $180.95 | |
| 24 | 1402-043 | BEARING, BALL - DOUBLE ROW | 1 | $69.95 | |
| 25 | 0423-423 | RING,RETAINING (HOUSING ID:55) | 1 | $4.13 | |
| 26 | 0502-347 | BRACKET,ACTUATOR-WELDMENT | 1 | $26.95 | |
| 27 | 1402-011 | SEAL | 1 | $5.51 | |
| 28 | 1502-085 | SHAFT,INPUT-ASSEMBLY | 1 | $90.95 | |
| 29 | 0402-997 | PUSHROD,SELECTOR | 1 | $66.95 | |
| 30 | 0402-998 | FORK,SELECTOR | 1 | $82.95 | |
| 31 | 0402-417 | SHAFT,SHUTTLE | 1 | $20.63 | |
| 32 | 0423-402 | RING,RETAINING-4MM EXT. | 1 | $3.16 | |
| 33 | 0423-147 | O-RING,3X 2MM | 1 | $1.50 | |
| 34 | 0402-999 | SPRING,RETURN-4WD | 1 | $1.78 | |
| 35 | 0502-296 | ACTUATOR (3 WIRE) | 1 | $381.95 | |
| 36 | 0423-892 | O-RING (8X1.5) | 1 | $3.71 | |
| 37 | 0423-396 | SCREW,SELF TAP-TSPH M6-1.0X15 | 1 | $1.09 |
