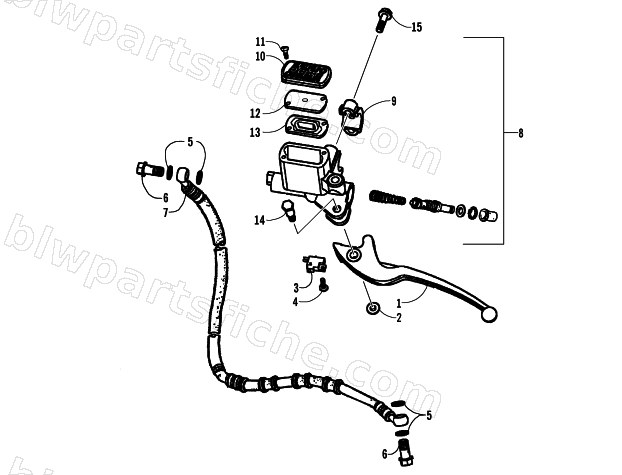

HYDRAULIC HAND BRAKE ASSEMBLY
2007 90 UTILITY
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3306-819 | LEVER L STRG HANDLE | 1 | $12.35 | |
| 2 | 3304-654 | NUT FLANGE 6MM | 1 | $1.23 | |
| 3 | 3303-141 | SW ASSY RR STOP | 1 | $20.63 | |
| 4 | 3303-321 | SCREW WASHER 4*12 | 1 | $0.81 | |
| 5 | 3303-284 | WASHER OIL BOLT **(1) C.98.06.01. | 1 | $1.23 | |
| 6 | 3303-257 | R/B 3307-067 | 1 | $5.95 | |
| 7 | 3305-278 | HOSE ASSY RR BRAKE | 1 | $122.95 | |
| 8 | 3305-982 | CYLINDER SET RR MASTER | 1 | $220.95 | |
| 9 | 3303-175 | HOLDER M/C | 1 | $10.97 | |
| 10 | 3303-174 | CAP MASTER CYLINDER | 1 | $13.73 | |
| 11 | 3303-318 | SCREW FLAT 4*12 | 1 | $1.78 | |
| 12 | 3305-250 | R/B 3306-225 | 1 | $11.95 | |
| 13 | 3303-925 | DIAPHRAGM | 1 | $64.95 | |
| 14 | 3303-254 | BOLT HANDLE LEVER **(0) C.98.04.02 | 1 | $1.09 | |
| 15 | 3304-189 | BOLT FLANGE SH 6*20 | 1 | $0.81 |
