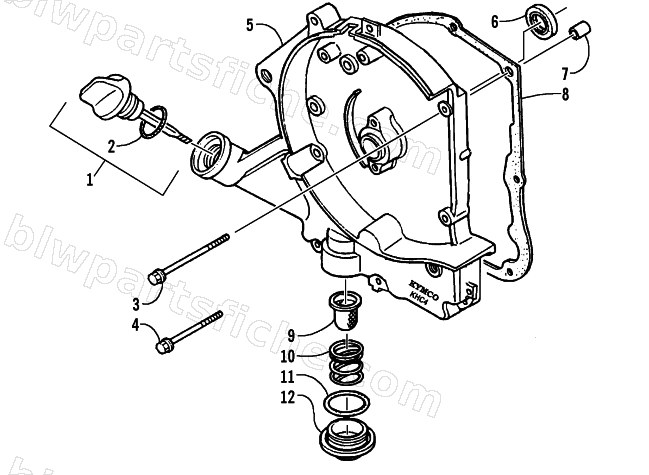

2007 Arctic Cat 90 UTILITY — CRANKCASE COVER ASSEMBLY
2007 90 UTILITY
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3303-050 | GAUGE ASSY OIL LEVEL | 1 | $6.75 | |
| 2 | 3304-102 | O-RING 18*3 | 1 | $1.78 | |
| 3 | 3303-390 | BOLT FLANGE SH 6*100 | 1 | $1.95 | |
| 4 | 3304-580 | BOLT FLANGE 6X85 | 1 | $3.02 | |
| 5 | 3303-007 | COVER R CRANKCASE **(0) C.2003.01.03 | 1 | $108.95 | |
| 6 | 3303-296 | OIL SEAL 19.8*30*5 **9000-M2 | 1 | $20.63 | |
| 7 | 3303-341 | PIN DOWEL 8*14 | 1 | $2.33 | |
| 8 | 3303-012 | GASKET R COVER A | 1 | $16.49 | |
| 9 | 3303-691 | SCREEN OIL FILTER | 1 | $5.51 | |
| 10 | 3303-692 | SPG OIL FILTER SCREEN | 1 | $33.95 | |
| 11 | 3304-096 | O-RING 30.8MM | 1 | $1.78 | |
| 12 | 3303-021 | HOLE CAP TAPPET ADJUSTING **9000 C.97.09 | 1 | $16.49 |
