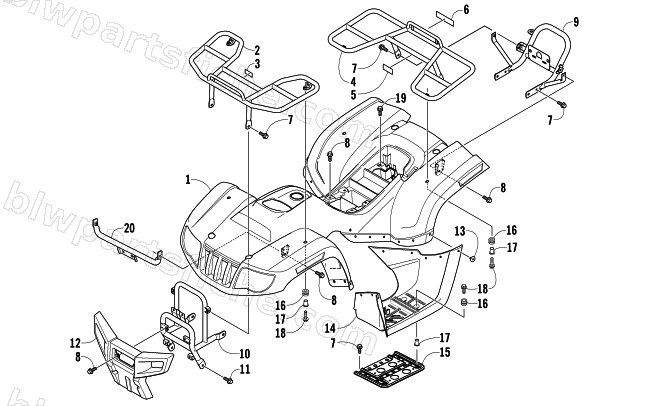

BODY PANEL AND RACK ASSEMBLY
2007 90 UTILITY
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3305-916 | BODY PANEL W/HEADLIGHT ASSY-MARSH | 1 | $341.95 | |
| 1 | 3305-915 | BODY PANEL W/HEADLIGHT ASSY-RED | 1 | $341.95 | |
| 2 | 3304-503 | FRONT CARRIER LUGGAGE | 1 | $169.95 | |
| 3 | 1411-316 | DECAL,WARNING-RACK(10 LB.) | 1 | $23.39 | |
| 4 | 3304-504 | REAR CARRIER LUGGAGE | 1 | $156.95 | |
| 5 | 1411-317 | DECAL,WARNING-RACK(15 LB.) | 1 | $23.39 | |
| 6 | 1411-318 | DECAL,'ARCTIC CAT' WHITE | 1 | $10.97 | |
| 7 | 3304-543 | BOLT FLANGE 8*16 | 1 | $1.50 | |
| 8 | 3304-587 | BOLT WASHER 6*16 | 1 | $1.23 | |
| 9 | 3304-505 | GRIP ASSY REAR | 1 | $129.95 | |
| 10 | 3304-541 | R/B 3306-741 | 1 | $109.95 | |
| 11 | 3304-544 | BOLT FLANGE 8*12 | 1 | $1.78 | |
| 12 | 3306-141 | BUMPER-FRONT | 1 | $37.95 | |
| 14 | 3306-144 | MUDGUARD ASSY R FLOOR | 1 | $82.95 | |
| 14 | 3306-145 | MUDGUARD ASSY L FLOOR | 1 | $82.95 | |
| 15 | 3304-494 | FOOTREST-RH | 1 | $37.95 | |
| 15 | 3304-495 | FOOTREST-LH | 1 | $37.95 | |
| 16 | 3303-227 | RUBBER WIND SCREEN | 1 | $1.92 | |
| 17 | 3303-233 | COLLAR FLOOR | 1 | $2.33 | |
| 18 | 3304-586 | BOLT WASHER 6*20 | 1 | $1.23 | |
| 19 | 3303-313 | BOLT WASH 6*16 | 1 | $1.09 | |
| 20 | 3304-549 | STAY FRONT COVER | 1 | $20.63 |
