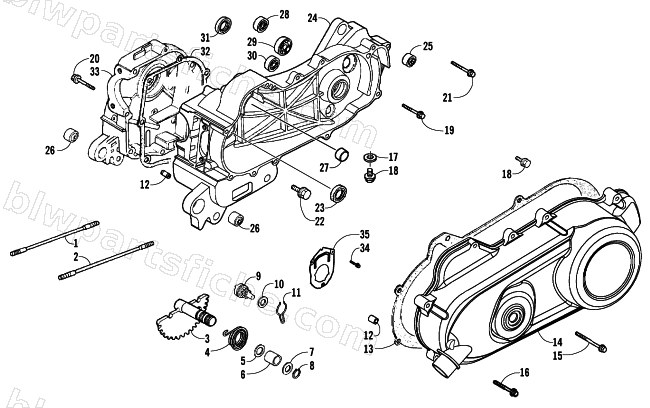

CRANKCASE ASSEMBLY
2007 90 DVX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3303-247 | BOLT A STUD 8*182.5 | 1 | $5.95 | |
| 2 | 3303-248 | BOLT B STUD 8*190.5 | 1 | $4.95 | |
| 3 | 3303-119 | SPINDER COMP KICK **9000 C.97.09.18. | 1 | $50.95 | |
| 4 | 3303-122 | SPRING KICK RETURN **(0) C.2001.06.30 | 1 | $17.87 | |
| 5 | 3303-121 | COLLAR KICK BOSS **0000 C.97.09.18. | 1 | $1.92 | |
| 6 | 3303-120 | BUSH KICK SPINDLE **6010-M1 C.97.09.18 | 1 | $3.02 | |
| 7 | 3303-276 | WASHER KICK SPINDLE **6000 C.97.07.26 | 1 | $1.23 | |
| 8 | 3303-345 | CIR CLIP EX 14MM | 1 | $1.37 | |
| 9 | 3303-118 | KICK DRIVEN GEAR COMP **9000 C.97.09.18. | 1 | $47.95 | |
| 10 | 3303-272 | WASHER THRUST 10MM **0000 C.99.07.07. | 1 | $0.81 | |
| 11 | 3303-117 | SPG KICK DRIVEN GEAR **9000 C.98.10.09 | 1 | $2.33 | |
| 12 | 3303-341 | PIN DOWEL 8*14 | 1 | $2.33 | |
| 13 | 3303-013 | GASKET L COVER A | 1 | $23.39 | |
| 14 | 3304-615 | COVER L SIDE | 1 | $156.95 | |
| 15 | 3303-386 | BOLT FLANGE SH 6*35 | 1 | $2.06 | |
| 16 | 3303-385 | BOLT FLANGE SH 6*28 | 1 | $0.81 | |
| 17 | 3303-278 | WASHER 8MM **0000 C.99.07.07. | 1 | $0.81 | |
| 18 | 3303-365 | R/B 3304-544 | 1 | $0.95 | |
| 19 | 3303-372 | BOLT FLANGE 8*60 | 1 | $3.95 | |
| 20 | 3303-387 | BOLT FLANGE SH 6*45 | 1 | $3.95 | |
| 21 | 3303-370 | BOLT FLANGE 8*45 (GOLDEN) | 1 | $2.06 | |
| 22 | 3304-052 | BOLT DRAIN PLUG SPECIAL | 1 | $3.02 | |
| 23 | 3303-296 | OIL SEAL 19.8*30*5 **9000-M2 | 1 | $20.63 | |
| 24 | 3303-004 | CASE SET L CRANK | 1 | $361.95 | |
| 25 | 3303-403 | UNDER RUBBER, BUSH REAR CUSHION | 1 | $6.95 | |
| 26 | 3303-402 | RUBBER BUSH ENG HANGER | 1 | $6.47 | |
| 27 | 3304-597 | BUSH 8*12*8 | 1 | $2.33 | |
| 28 | 3303-464 | BRG BALL RADIAL 6203/C3 | 1 | $16.49 | |
| 29 | 3303-459 | BEARING NEEDLE 15MM | 1 | $20.63 | |
| 30 | 3303-465 | BRG BALL RADIAL 6204/20*47*14 | 1 | $20.63 | |
| 31 | 3303-297 | OIL SEAL 20*32*6 **0030 C.97.07.26. | 1 | $2.61 | |
| 32 | 3303-003 | GASKET CRANK CASE A | 1 | $12.35 | |
| 33 | 3303-400 | CRANK CASE SET RIGHT | 1 | $156.95 | |
| 34 | 3303-391 | BOLT SPECIAL 5*10 | 1 | $0.81 | |
| 35 | 3303-009 | PLATE COVER **(0) C.2003.01.13 | 1 | $5.37 |
