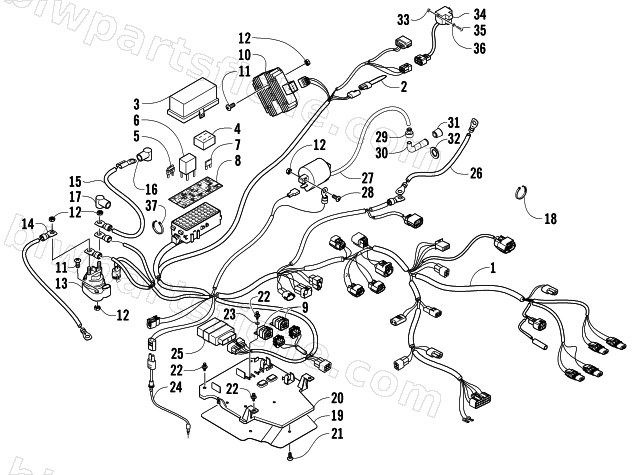

WIRING HARNESS ASSEMBLY
2007 700 EFI AUTOMATIC TRANSMISSION 4X4 FIS
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0486-217 | HARNESS/DIA,MAIN(07 700 EFI) | 1 | $1,240.95 | |
| 2 | 0486-164 | TETHER,REAR ACCESSORY CONNECTOR | 1 | $12.35 | |
| 3 | 0530-008 | COVER, PDM - ASSY | 1 | $34.95 | |
| 4 | 0430-037 | HOLDER,SPARE FUSE-FOAM | 1 | $3.02 | |
| 5 | 0430-034 | DIODE, MINI-1A | 1 | $16.49 | |
| 6 | 0430-045 | RELAY,SPST-4P 12V/20A | 1 | $30.95 | |
| 7 | 0430-032 | FUSE, MINI-10A | 1 | $3.02 | |
| 7 | 0430-031 | FUSE, MINI-15A | 1 | $4.54 | |
| 7 | 0430-030 | FUSE, MINI-30A | 1 | $2.88 | |
| 8 | 1411-578 | DECAL,PDM (07 700 EFI) | 1 | $110.95 | |
| 9 | 0430-052 | RELAY,SPDT-30A WP | 1 | $30.95 | |
| 10 | 0824-037 | REGULATOR,VOLTAGE (W/TACH SIGNAL) | 1 | $113.95 | |
| 11 | 8476-625 | SCREW,MACH-TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 12 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 13 | 0445-058 | SOLENOID,STARTER RELAY | 1 | $37.95 | |
| 14 | 0445-062 | CABLE,BATTERY-SOLENOID (8.5" RED #6) | 1 | $9.59 | |
| 15 | 0445-064 | CABLE,SOLENOID-STARTER (19" RED #6) | 1 | $30.95 | |
| 16 | 0645-019 | BOOT,TERMINAL-BATTERY | 1 | $4.40 | |
| 17 | 0645-327 | BOOT,TERMINAL-SOLENOID | 1 | $1.64 | |
| 18 | 0123-903 | TIE,CABLE 11.50 | 1 | $0.54 | |
| 19 | 2406-406 | PLATE,SHIELD | 1 | $16.95 | |
| 20 | 2406-105 | TRAY,ELECTRICAL | 1 | $30.95 | |
| 21 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 22 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 23 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 24 | 0409-089 | SWITCH,BRAKE-FOOT | 1 | $58.95 | |
| 25 | 3430-063 | ECU UNIT | 1 | $1,048.95 | |
| 26 | 0445-065 | CABLE,BATTERY/CHASSIS (6AWG) | 1 | $16.95 | |
| 27 | 3530-053 | COIL ASSEMBLY,IGNITION | 1 | $164.95 | |
| 28 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 29 | 3430-009 | SEAL, HIGH TENSION CORD | 1 | $10.97 | |
| 30 | 3530-054 | CAP ASSEMBLY,SPARK PLUG | 1 | $64.95 | |
| 31 | 3409-031 | COVER,SPARK PLUG CAP | 1 | $10.97 | |
| 32 | 3409-030 | SEAL,SPARK PLUG CAP | 1 | $16.49 | |
| 33 | 0423-493 | NUT,HEX-M4-.7 W/STAR WSR | 1 | $0.26 | |
| 34 | 0409-064 | SENSOR,INCLINATION (AD) | 1 | $90.95 | |
| 35 | 8468-425 | SCREW,MACH-TSPNH M4X.7X25 CL8.8 BLK | 1 | $0.54 | |
| 36 | 0123-802 | WASHER,FLAT .194X.50X.048-Z&Y | 1 | $0.12 | |
| 37 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 |
