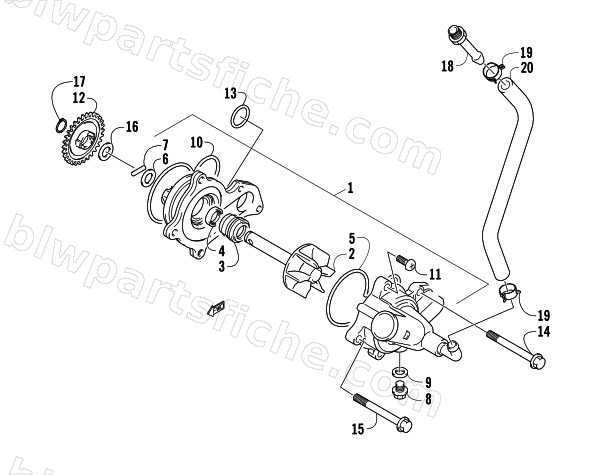

WATER PUMP ASSEMBLY
2007 700 EFI AUTOMATIC TRANSMISSION 4X4 FIS
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3403-128 | PUMP ASSEMBLY,WATER | 1 | $235.95 | |
| 2 | 3413-041 | IMPELLER | 1 | $82.95 | |
| 3 | 3005-909 | SEAL, MECHANICAL WATER PUMP | 1 | $66.95 | |
| 4 | 3406-143 | OIL SEAL | 1 | $26.95 | |
| 5 | 3423-816 | O RING | 1 | $25.95 | |
| 6 | 3423-772 | WASHER | 1 | $2.95 | |
| 7 | 3423-817 | PIN | 1 | $5.78 | |
| 8 | 3423-185 | BOLT | 1 | $12.35 | |
| 9 | 3402-436 | WASHER | 1 | $1.92 | |
| 10 | 3423-818 | O RING | 1 | $45.95 | |
| 11 | 3007-511 | SCREW | 1 | $2.47 | |
| 12 | 3403-129 | GEAR,WATER PUMP DRIVEN | 1 | $74.95 | |
| 13 | 3004-521 | O RING | 1 | $3.02 | |
| 14 | 3423-878 | BOLT,CRANKCASE-M6X45 | 1 | $3.30 | |
| 15 | 3007-370 | BOLT,CYLINDER HEAD COVER NO. 2 | 1 | $3.95 | |
| 16 | 3423-443 | SHIM, 10 X 18 X 0.5 | 1 | $2.95 | |
| 17 | 3423-871 | CIRCLIP | 1 | $3.71 | |
| 18 | 3007-075 | UNION,WATER BYPASS HOSE | 1 | $20.63 | |
| 19 | 3423-855 | CLIP | 1 | $10.97 | |
| 20 | 3410-022 | HOSE,WATER BYPASS | 1 | $46.95 |
