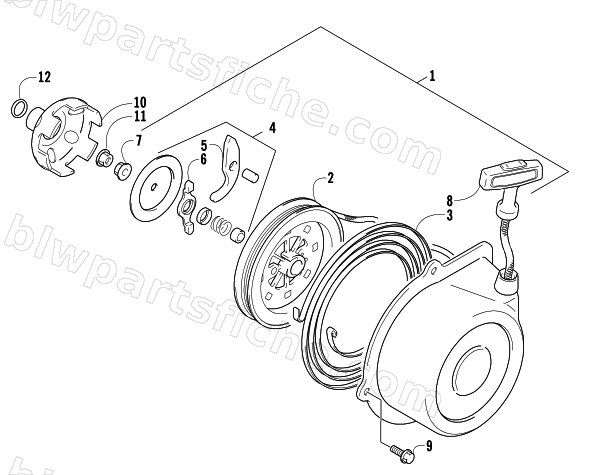

2007 Arctic Cat 700 EFI AUTOMATIC TRANSMISSION 4X4 FIS — RECOIL STARTER ASSEMBLY
2007 700 EFI AUTOMATIC TRANSMISSION 4X4 FIS
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3445-003 | STARTER ASSY, RECOIL | 1 | $316.95 | |
| 2 | 3445-004 | REEL, STARTER | 1 | $87.95 | |
| 3 | 3445-007 | SPRING, RECOIL | 1 | $69.95 | |
| 4 | 3445-016 | RATCHET SET | 1 | $29.95 | |
| 5 | 3445-005 | RATCHET SET | 1 | $20.63 | |
| 6 | 3445-006 | GUIDE, RATCHET | 1 | $6.20 | |
| 7 | 3007-373 | NUT | 1 | $3.16 | |
| 8 | 3445-011 | ROPE ASSY W GRIP,STARTER 6.0X1870 | 1 | $90.95 | |
| 9 | 3423-428 | SCREW, RECOIL STARTER | 1 | $3.30 | |
| 10 | 3445-029 | CUP,STARTER 500 ATV | 1 | $122.95 | |
| 11 | 3007-391 | NUT,INTER COOLER BRKT | 1 | $3.16 | |
| 12 | 3423-053 | O RING | 1 | $6.47 |
