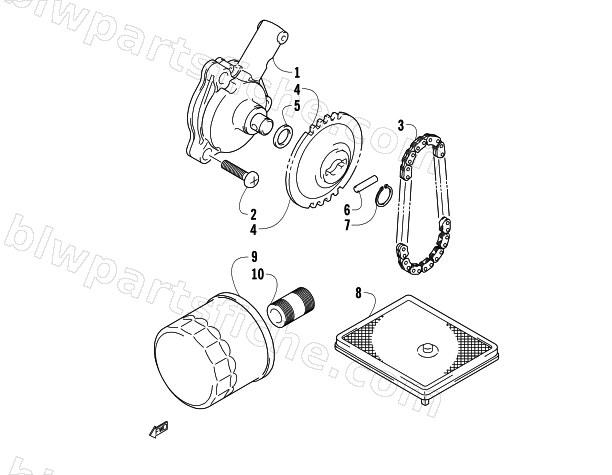

2007 Arctic Cat 700 EFI AUTOMATIC TRANSMISSION 4X4 FIS — OIL FILTER/PUMP ASSEMBLY
2007 700 EFI AUTOMATIC TRANSMISSION 4X4 FIS
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3403-123 | PUMP ASSEMBLY,ENG OIL | 1 | $244.95 | |
| 2 | 3423-510 | SCREW (6X25) | 1 | $2.61 | |
| 3 | 3403-124 | CHAIN,OIL PUMP DRIVE | 1 | $69.95 | |
| 4 | 3403-125 | SPROCKET,OIL PUMP DRIVE | 1 | $94.95 | |
| 5 | 3423-443 | SHIM, 10 X 18 X 0.5 | 1 | $2.95 | |
| 6 | 3423-046 | PIN ,M4X15.8 | 1 | $3.30 | |
| 7 | 3423-871 | CIRCLIP | 1 | $3.71 | |
| 8 | 3403-126 | STRAINER,OIL | 1 | $37.95 | |
| 9 | 0812-034 | FILTER,OIL-(0812-029) | 1 | $16.49 | |
| 10 | 3403-219 | UNION,OIL STAND | 1 | $20.63 |
