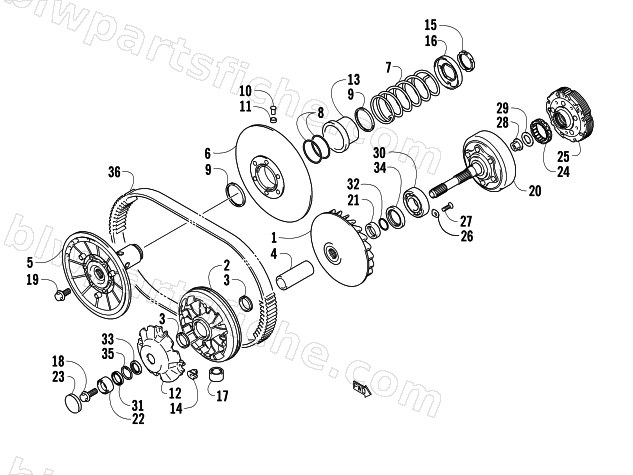

TRANSMISSION ASSEMBLY

2007 700 EFI AUTOMATIC TRANSMISSION 4X4 FIS LE

Scroll / pinch to zoom · drag to pan · double-click resets

#	Part No.	Description	Qty	Price
1	3403-130	FACE,FIXED DRIVE	1	$275.95
2	3403-131	FACE,MOVABLE DRIVE	1	$267.95
3	3403-132	SEAL,MOVABLE DRIVE FACE	1	$30.95
4	3423-843	SPACER,MOVABLE DRIVE	1	$87.95
5	3403-133	FACE,FIXED DRIVEN	1	$445.95
6	3403-134	FACE,MOVABLE DRIVEN	1	$486.95
7	3402-474	SPRING, MOVABLE DRIVEN	1	$90.95
8	3402-475	O RING, MOVABLE DRIVEN	1	$12.35
9	3403-135	SEAL,MOVABLE DRIVEN	1	$30.95
10	3402-477	PIN, MOVABLE DRIVEN	1	$12.35
11	3402-478	SPACER, MOVABLE DRIVEN	1	$13.73
12	3403-136	PLATE,MOVABLE DRIVE	1	$90.95
13	3402-756	SHEET, MOVABLE DRIVEN	1	$33.95
14	3402-481	DAMPER, MOVABLE DRIVE	1	$17.87
15	3423-406	NUT, DRIVEN PULLEY	1	$26.95
16	3402-482	HOLDER, MOVABLE DRIVEN	1	$37.95
17	3403-137	ROLLER,MOVABLE DRIVEN	1	$37.95
18	3423-819	BOLT(12X30)	1	$6.75
19	3423-820	BOLT(12X25)	1	$5.51
20	3403-138	HOUSING,CLUTCH	1	$421.95
21	3423-821	SPACER,PRIMARY SHAFT	1	$58.95
22	3423-822	SPACER,CLUTCH HOUSING	1	$58.95
23	3423-823	CAP,V-BELT BEARING	1	$22.95
24	3446-003	CLUTCH, PRI DRIVE ONE WAY	1	$220.95
25	3403-139	CLUTCH ASSEMBLY,SHOE	1	$501.95
26	3423-824	RETAINER,CL HSG BRG	1	$6.47
27	3423-018	SCREW, 6X12	1	$2.61
28	3423-501	NUT (W/LOCK PATCH)	1	$10.97
29	3423-825	WASHER,SHOE CLUTCH	1	$3.95
30	3402-221	BEARING,M28X68X18	1	$122.95
31	3403-140	BEARING,CLUTCH HOUSING	1	$126.95
32	3423-831	O RING	1	$4.95
33	3403-173	SEAL,CLUTCH HSG OIL,R	1	$54.95
34	3403-148	SEAL,DRIVE SHAFT SPACE	1	$56.95
35	3423-826	CIRCLIP	1	$5.92
36	3403-141	V-BELT,DRIVE	1	$259.95
